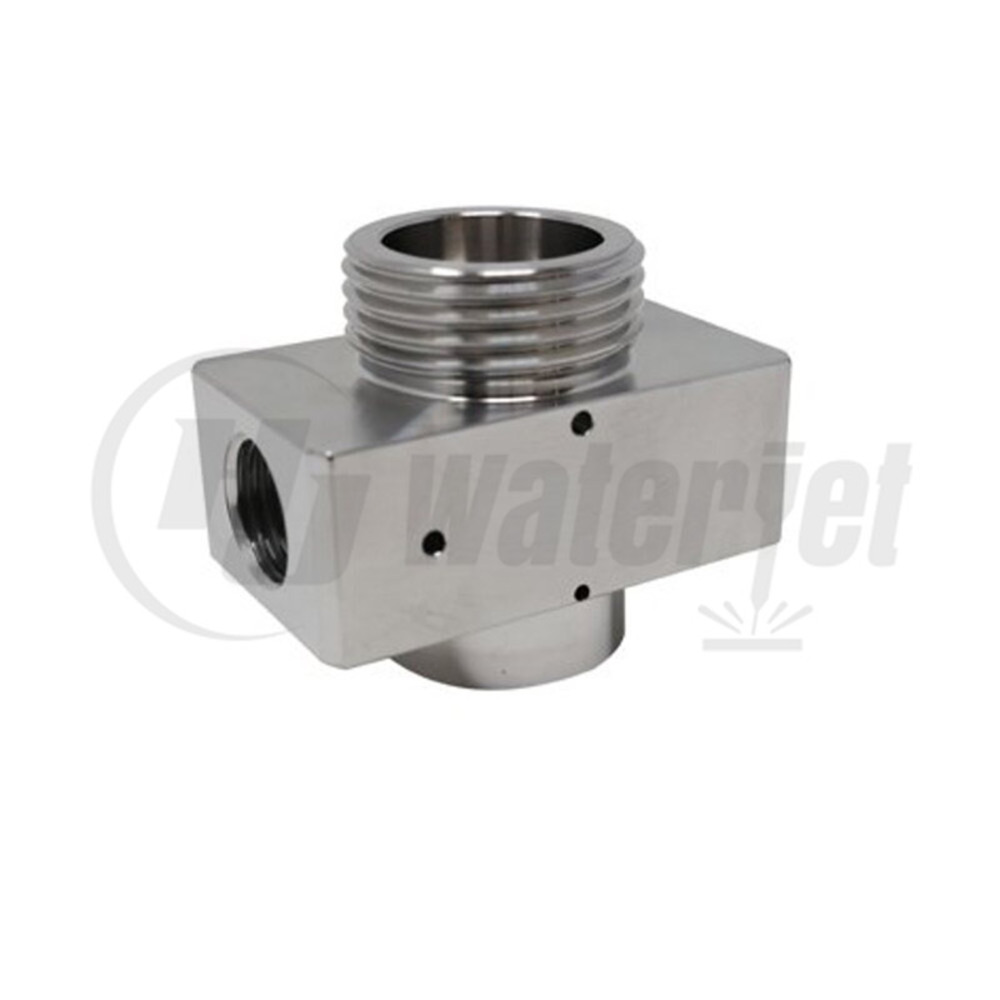

94K Mini On/Off Valve Body
The 94K Mini On/Off Valve Body-HJ-190048-1 is a critical component within ultra-high-pressure waterjet cutting systems, engineered to provide a durable and precise housing for internal valve components. Designed to replace Flow HJ-014554-1 and equivalent assemblies, the HJ-190048-1 94K Mini On/Off Valve Body serves as the foundation of the mini on/off valve, ensuring accurate alignment, reliable sealing, and consistent water flow control in demanding industrial environments. It is available for use with 1/4-inch or 3/8-inch high-pressure tubing connections, making it a versatile solution for a wide range of waterjet cutting applications.
Manufactured from high-strength, corrosion-resistant materials and precision-machined to exact tolerances, the valve body is built to withstand continuous exposure to pressures up to 94,000 PSI. Its robust construction helps maintain valve integrity, reduce internal leakage, and extend the service life of associated components including poppets, seats, seals, and actuators. Proper valve body condition is essential for maintaining cutting accuracy, dependable valve cycling, and overall system efficiency.
Whether performing preventive maintenance, rebuilding an on/off valve assembly, or replacing a worn component, the HJ-190048-1 94K Mini Valve Body delivers dependable performance for abrasive and pure waterjet cutting operations.
Key Features & Benefits
- Precision-machined for optimal fit and performance
- Direct replacement for Flow Part HJ-014554-1
- Compatible with 1/4" and 3/8" high-pressure tubing configurations
- Designed for ultra-high-pressure systems up to 94,000 PSI
- Provides secure housing for poppet, seat, seal, and actuator components
- Enhances valve sealing and flow control performance
- Corrosion-resistant construction for long service life
- Ideal for maintenance, rebuilds, and OEM-equivalent repairs
- Helps reduce downtime and maintain cutting accuracy
- Suitable for abrasive and pure waterjet applications
Applications
- Ultra-high-pressure waterjet cutting systems
- 94K mini on/off valve assemblies
- Abrasive waterjet cutting machines
- Pure water cutting equipment
- Waterjet maintenance and repair programs
- Manufacturing, aerospace, stone, metal, glass, and composite cutting operations
Why Replace the Valve Body?
Over time, continuous high-pressure cycling can cause wear, internal scoring, corrosion, or sealing surface damage within the valve body. A worn valve body can contribute to:
- Internal leakage
- Inconsistent valve performance
- Premature seal and poppet wear
- Reduced cutting efficiency
- Increased maintenance costs
- Unplanned production downtime
Replacing a damaged valve body restores proper alignment of internal valve components and helps ensure reliable on/off valve operation under extreme pressure conditions. Inspection of the valve body for scratches, pitting, or wear is commonly recommended during valve rebuild procedures.
Product Specifications
|
Specification
|
Details
|
|
Product Name
|
94K Mini On/Off Valve Body
|
|
Flow Part
|
HJ-014554-1
|
|
H2O Part
|
HJ-190048-1
|
|
Application
|
High-Pressure Waterjet On/Off Valve
|
|
Tubing Compatibility
|
1/4" or 3/8"
|
|
Operating Pressure
|
Up to 94,000 PSI
|
|
Material
|
High-Strength Corrosion-Resistant Alloy
|
|
Use
|
Waterjet Cutting Systems
|
