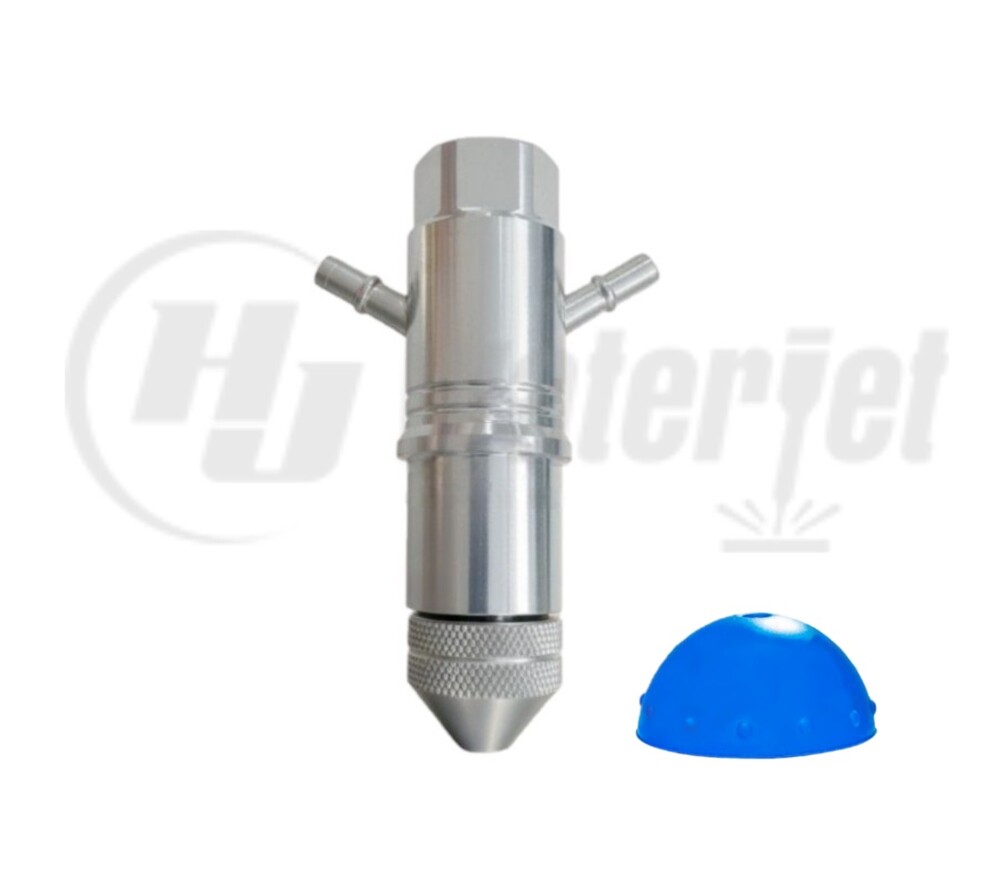

IDE 60K or 94K UHP Dual-Port Integrated Diamond Cutting Head Assembly
The HJ WATERJET IDE 60 or 94K Dual Port Integrated Diamond Cutting Head (HJ-391130-1-xx) is a premium ultra-high-pressure abrasive waterjet cutting head engineered to deliver exceptional cutting precision, superior abrasive mixing efficiency, and long-term reliability in waterjet systems operating up to 94,000 PSI. The HJ-391130-1-xx cutting head combines the diamond orifice, mixing chamber, and cutting head body into a precision-aligned assembly that optimizes cutting performance while simplifying maintenance requirements.
Unlike conventional abrasive cutting heads that require precise alignment between multiple components, the Integral Diamond Eductor design integrates critical cutting elements into a single engineered assembly. This reduces alignment errors, improves jet stream consistency, minimizes turbulence, and enhances overall cutting efficiency in demanding industrial environments.
The Dual Port configuration provides dual abrasive inlet pathways, allowing for improved abrasive distribution and optimized flow characteristics throughout the mixing chamber. This design promotes consistent abrasive entrainment and stable cutting stream formation, making it ideal for high-production CNC waterjet operations where performance and reliability are critical.
Engineered with an Advanced Wear-Resistant Industrial Design, the IDE 94K Dual Port Cutting Head is built to withstand:
- Continuous 94,000 PSI operating pressures
- Abrasive garnet erosion
- Hydraulic shock loads
- Thermal expansion and vibration
- High-cycle industrial production environments
- Demanding multi-shift manufacturing operations
The HJ-391130-1-xx IDE 94K Dual Port Cutting Head is commonly used in:
- Aerospace manufacturing
- Precision metal fabrication
- Stone and granite cutting
- Glass processing
- Composite material machining
- Automotive manufacturing
- Industrial CNC waterjet production systems
Dual-Port Abrasive Flow Optimization
The dual-port configuration offers:
- Improved abrasive distribution
- Balanced abrasive feed
- Enhanced mixing chamber performance
- Increased cutting consistency
- Stable abrasive entrainment
The result is improved cutting quality across a wide range of materials and thicknesses.
PERFORMANCE BENEFITS
✔ Superior cutting accuracy
✔ Enhanced abrasive mixing efficiency
✔ Improved edge quality
✔ Reduced abrasive consumption
✔ Longer component lifespan
✔ Simplified maintenance procedures
✔ Stable ultra-high-pressure operation
✔ Reduced downtime
✔ Increased productivity
✔ Consistent cutting performance
WHY CHOOSE THE IDE 94K DUAL PORT CUTTING HEAD?
- Advanced Integral Diamond Eductor Technology
- Dual-port abrasive flow optimization
- Exceptional cutting precision
- Superior wear resistance
- Reduced maintenance requirements
- Improved abrasive efficiency
- Reliable ultra-high-pressure performance
- Engineered for demanding industrial environments
Trademark Disclaimer:
IDE® is a registered trademark of H2O Jet. References to IDE® (Integral Diamond Eductor) on this website are used exclusively to identify the intended application, compatibility, or replacement purpose of HJ Waterjet products. HJ Waterjet is an independent manufacturer and supplier of premium, high-precision waterjet parts. The use of the IDE® trademark is for reference purposes only and does not imply any ownership, partnership, approval, or commercial relationship with H2O Jet.
