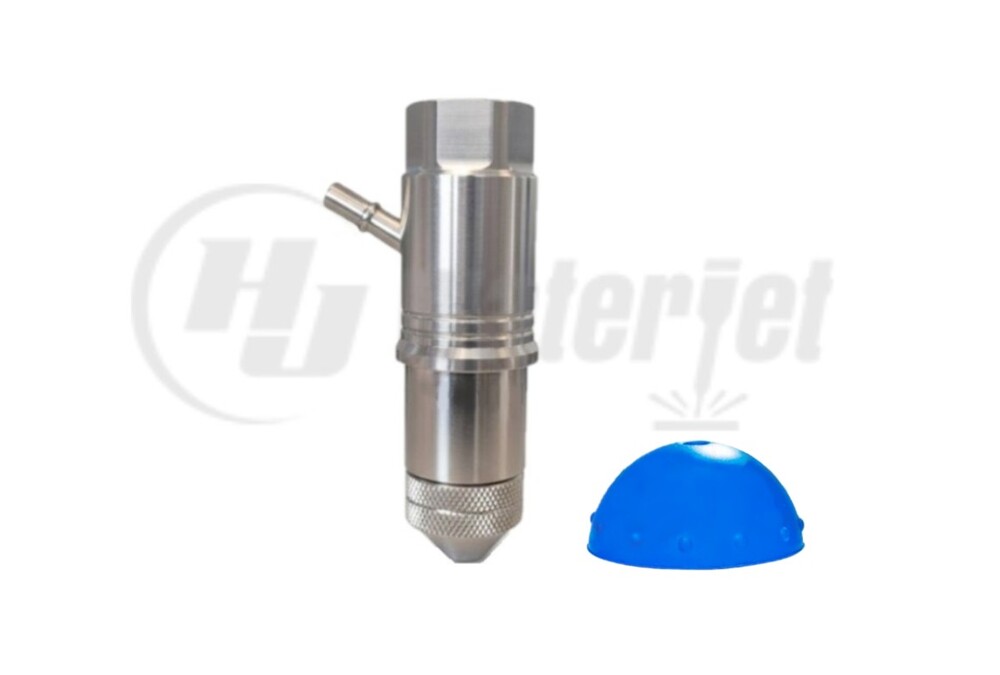

IDE 94K Single Port Abrasive Diamond Head Assembly
The HJ WATERJET IDE 94K Single Port Waterjet Cutting Head (HJ-391131-1-xx) is a premium ultra-high-pressure abrasive waterjet cutting head engineered for maximum cutting precision, extended component life, and simplified maintenance. Designed specifically for waterjet systems operating up to 94,000 PSI, this advanced cutting head integrates the diamond orifice, mixing chamber, and body into a single precision-aligned assembly, delivering exceptional cutting performance while reducing downtime and operational costs.
The IDE 94K Single Port Cutting Head (HJ-391131-1-xx) is trusted by fabricators, machine shops, aerospace manufacturers, metal processors, stone fabricators, and industrial cutting operations seeking reliable performance in demanding production environments.
Key Features
Unlike conventional multi-piece cutting head assemblies, the Integral Diamond Eductor design combines the diamond orifice and mixing chamber into a single engineered unit. This integrated construction ensures perfect alignment throughout the cutting stream path, resulting in:
- Superior jet stream stability
- Enhanced cutting accuracy
- Improved edge quality
- Consistent abrasive mixing
- Reduced component wear
- Simplified installation and maintenance procedures
Built for 94,000 PSI Operation
Specifically engineered for extreme-pressure waterjet systems, the IDE-Style 94K Single Port maintains reliable performance under ultra-high-pressure operating conditions. The rugged construction supports continuous industrial use while maintaining optimal cutting efficiency and precision.
Single-Port Configuration
The single-port design offers a streamlined abrasive delivery system that simplifies operation and maintenance. With fewer connection points and a more compact design, operators benefit from:
- Easier setup and installation
- Reduced maintenance requirements
- Improved abrasive flow consistency
- Enhanced reliability in production environments
Applications
The IDE 94K Single Port Waterjet Cutting Head (HJ-391131-1-xx) is ideal for:
- Aerospace manufacturing
- Metal fabrication
- Architectural metalwork
- Stone and granite processing
- Glass cutting
- Composite material machining
- Automotive manufacturing
- Industrial production facilities
- Precision engineering applications
- Custom fabrication shops
Its ability to operate effectively under ultra-high-pressure conditions makes it particularly valuable for applications requiring exceptional precision, edge quality, and production efficiency.
Compatibility
The HJ-391131-1-xx IDE 94K Single Port is designed for compatibility with numerous abrasive waterjet cutting systems operating in the 90,000–94,000 PSI range. Multiple orifice sizes are available to accommodate different cutting requirements, material thicknesses, and production objectives. Users should select the appropriate configuration based on their specific machine setup and application needs.
Why Choose the IDE 94K Single Port?
When production quality, reliability, and operational efficiency matter, the IDE 94K Single Port delivers a proven solution. Its integrated diamond design provides exceptional alignment, longer service life, easier maintenance, and consistent cutting performance under extreme operating pressures.
Whether you are cutting stainless steel, aluminum, titanium, stone, composites, or advanced industrial materials, this cutting head helps maximize productivity while minimizing maintenance costs and downtime.
