VALVE INSERT PLASTIC

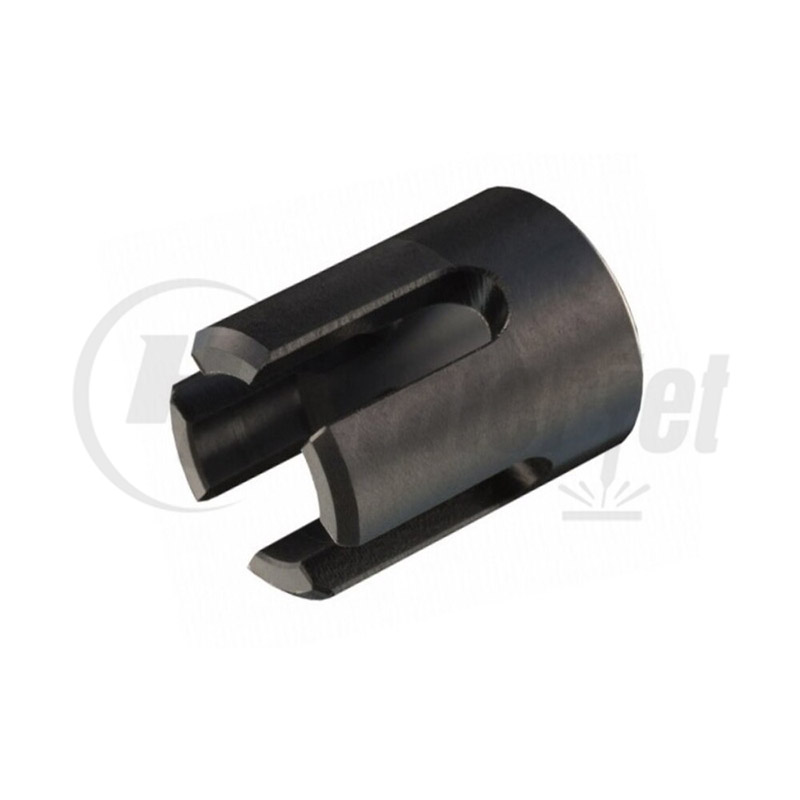

Valve Insert | HJ-4201605 -Premium High-Pressure Check Valve Insert for BFT Waterjet Intensifier Pumps

The HJ WATERJET Valve Insert HJ-4201605, also known as CP022045/775, is a critical sealing and flow-control component used within the check valve assembly of BFT ultra-high-pressure waterjet intensifier pumps. Engineered to operate under extreme pressures generated during waterjet cutting, this precision valve insert helps maintain one-way water flow, prevents backflow, and contributes to consistent pressure generation for maximum cutting performance. The HJ-4201605 Valve Insert is commonly installed in both suction and pressure valve assemblies and works in conjunction with the valve seat, lens, ball, spring, and safety bolt components of the BFT check valve system.

Key Features

Ultra-High Pressure Performance

Designed specifically for BFT waterjet intensifier systems operating at pressures exceeding 60,000 PSI, the valve insert provides reliable sealing characteristics under continuous pressure cycling, minimizing leakage and maintaining system efficiency.

Advanced Sealing Technology

Unlike traditional valve seat-only designs, the HJ-4201605, also known as CP022045/775 valve insert utilizes a specialized insert configuration that enhances sealing performance, improves valve responsiveness, and helps reduce wear on mating components. This design can contribute to longer service intervals and reduced maintenance costs.

Precision Flow Regulation

The valve insert plays a vital role in controlling water movement through the intensifier pump. By ensuring accurate opening and closing of the check valve assembly, it supports stable pressure output and consistent cutting quality across a wide range of industrial applications.

Extended Component Life

Manufactured from durable wear-resistant materials, the valve insert helps reduce stress on surrounding valve components, including valve seats and check valve bodies, resulting in improved overall pump longevity.

Technical Specifications

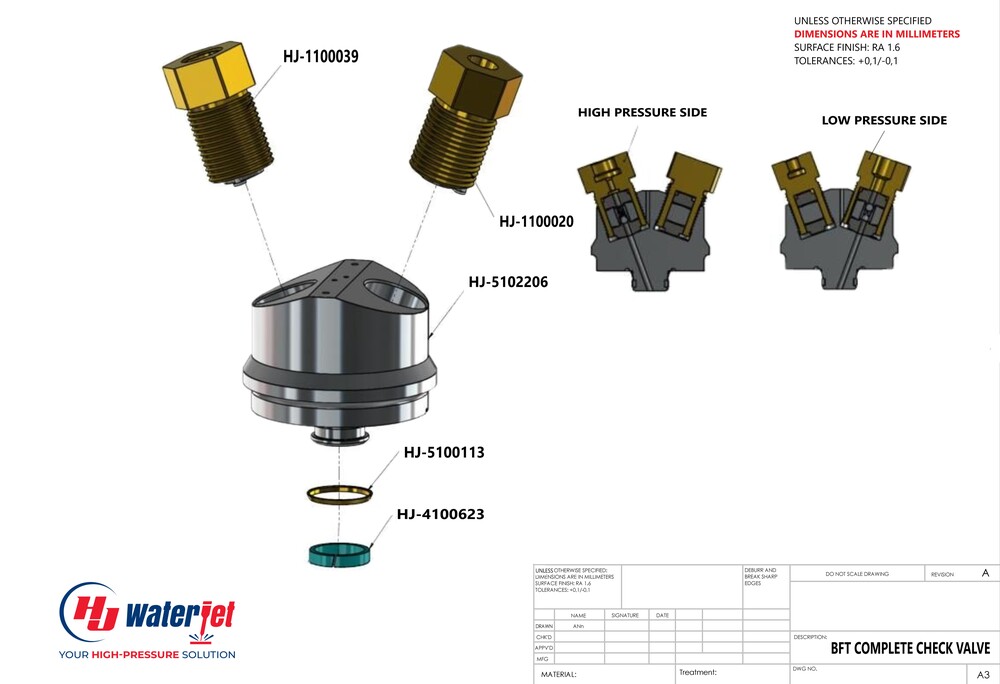

Function Within the Check Valve Assembly

The HJ-4201605 Valve Insert operates as an essential element of the pumps check valve mechanism. During the suction stroke, it allows water to enter the intensifier chamber while preventing reverse flow. During the pressure stroke, it assists in sealing the valve assembly to maintain ultra-high-pressure output directed toward the cutting head. Proper operation of the valve insert is crucial for:

• Maintaining cutting pressure stability
• Preventing pressure loss
• Reducing pump pulsation
• Improving energy efficiency
• Protecting internal pump components from premature wear
• Ensuring consistent waterjet cutting performance

Associated Components

The valve insert is commonly replaced alongside other check valve wear components, including:

• Valve Seat – HJ-5102173 also known as CP022046/593
• Lens – HJ-5102006 also known as CP022042/593
• Ball – HJ-4101362 also known as K016/660
• Safety Bolt – HJ-4100256 also known as CP022052/220

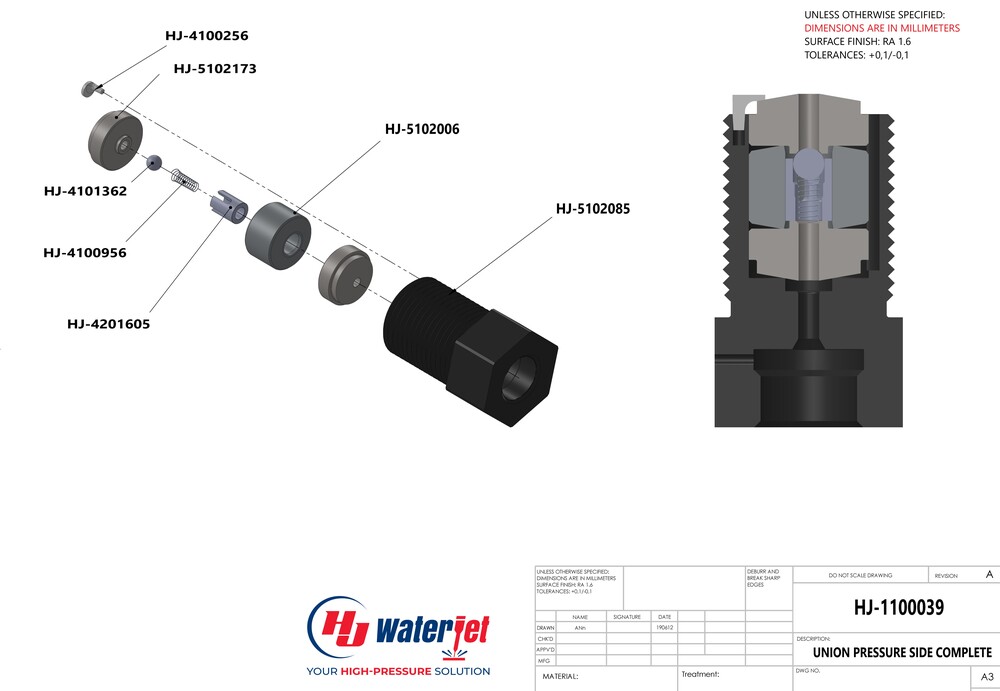

• Union Pressure Side – HJ-5102085 also known as CP022044/844

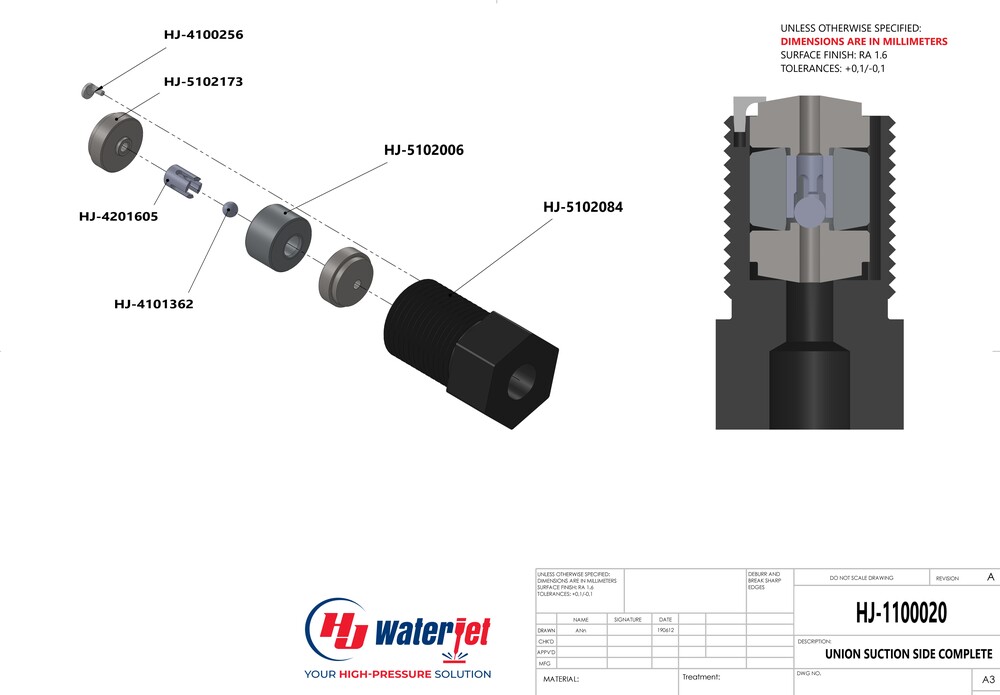

• Union Suction Side – HJ-5102084 also known as CP022043/844

Replacing these components as a complete valve service kit can help restore factory-level pump performance and reduce unexpected downtime.

Industries Served

The HJ-4201605 Valve Insert is widely used in:

• Metal fabrication
• Aerospace manufacturing
• Stone and granite processing
• Glass cutting
• Automotive production
• Composite material machining
• Defense manufacturing
• Industrial waterjet cutting operations

Benefits of Regular Replacement

Routine replacement of worn valve inserts helps:

✔ Maintain maximum pump efficiency
✔ Reduce costly production downtime
✔ Improve waterjet cutting accuracy
✔ Extend check valve assembly life
✔ Prevent pressure fluctuations
✔ Lower maintenance costs
✔ Increase overall waterjet system reliability
