Back Ring, Dual-Core | HJ-5200593 | HT022032/527| – HP Backup Ring for BFT Waterjet Pumps
The HJ-5200593 Back Ring, also known as HT022032/527, is a precision-engineered high-pressure backup ring designed for use in BFT and Semperdur waterjet intensifier pump systems. The HJ-5200593 Back Ring is installed within the high-pressure check valve assembly, where it provides essential reinforcement to primary sealing elements, helping prevent seal extrusion and maintain reliable sealing performance under extreme operating pressures. Cross-reference information identifies BFT part numbers 5200593, 5102040, and HT022032/527 as the same backup ring used in BFT check valve applications.
Manufactured from premium wear-resistant materials, the HJ-5200593 Back Ring is engineered to withstand the continuous pressure cycling and demanding conditions found in ultra-high-pressure waterjet cutting operations. By supporting critical sealing components, the HJ-5200593 Back Ring helps reduce internal leakage, improve pressure retention, and extend the service life of valve cartridges, seals, and other high-value pump components.

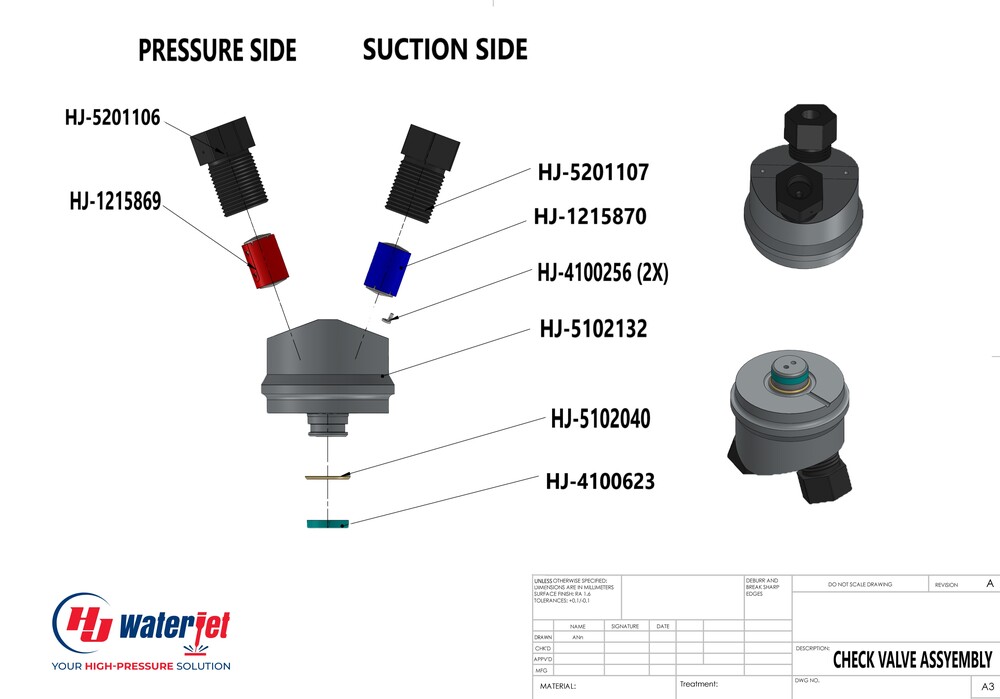

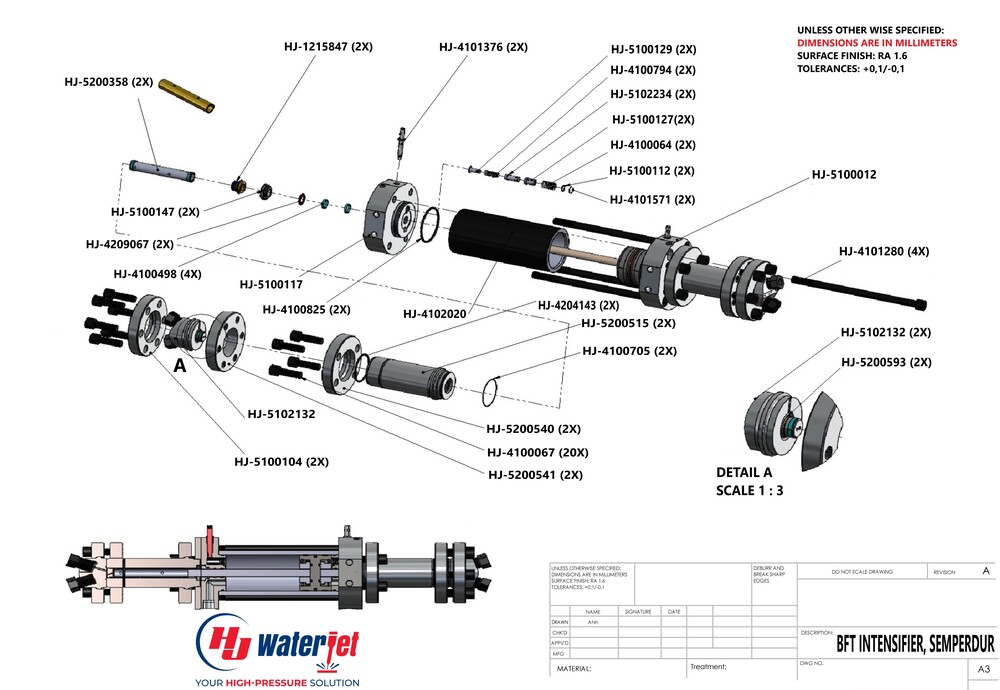

As a routine wear component within the check valve assembly, the HJ-5200593 Back Ring also known as HT022032/527 should be inspected and replaced during scheduled maintenance intervals, seal changes, and pump rebuilds. Replacing worn backup rings helps maintain consistent cutting performance, improve pump efficiency, and minimize costly downtime caused by pressure loss or premature seal failure. The HJ-5200593 Back Ring is commonly referenced in BFT check valve and intensifier pump diagrams and repair kits.
The HJ Waterjet HJ-5200593 Back Ring provides dependable performance for demanding industrial waterjet applications where reliability and pressure integrity are essential.
Key Features
- BFT Part Number 5200593
- Also known as HT022032/527
- Cross-reference replacement for BFT 5102040
- Precision-machined for OEM-compatible fit and performance
- Supports high-pressure seals in BFT check valve assemblies
- Helps prevent seal extrusion under extreme pressure
- Improves pressure retention and pump efficiency
- Reduces internal leakage and premature seal wear
- Manufactured from durable, wear-resistant materials
- Ideal for preventive maintenance and complete pump rebuilds
Applications
- BFT Intensifier Pumps
- BFT Semperdur Pump Systems
- High-Pressure Check Valve Assemblies
- Suction Valve Assemblies
- Pressure Valve Assemblies
- Ultra-High-Pressure Waterjet Cutting Systems
- Metal Fabrication Facilities
- Aerospace Manufacturing
- Stone and Glass Processing
- Automotive Component Production
- Industrial Waterjet Maintenance Programs
Benefits
The HJ-5200593 (HT022032/527) Back Ring plays a vital role in maintaining sealing integrity throughout the high-pressure system. By supporting primary seals and preventing extrusion, it helps maintain consistent operating pressure, improves component longevity, reduces maintenance costs, and maximizes waterjet pump reliability. Routine replacement during valve service can significantly extend the life of critical pump components while helping maintain peak cutting performance.
