SUCTION VALVE COMPLETE

Union Suction Side Complete | HJ-1100020

The HJ-1100020 Union Suction Side Complete, also known as CP022109/844, is a Complete Suction-Side Check Valve Assembly designed for high-pressure BFT waterjet intensifier pump systems. This precision-engineered component controls the inlet flow of water into the intensifier, ensuring efficient pump operation, consistent pressure generation, and reliable sealing under demanding industrial waterjet cutting conditions. It is commonly referenced as Suction Valve Complete, Union Suction Side Complete, or Suction Valve Assembly HJ-1100020.

Manufactured to exceed requirements of BFT high-pressure pump applications, the HJ-1100020 assembly integrates the critical suction valve components into a complete service-ready unit. The HJ-1100020 valve assembly helps prevent backflow, maintains proper water intake, and supports stable pump performance while reducing downtime during maintenance procedures.

Key Features

• Replacement reference: BFT Part Number 1100020
• Complete Suction-Side Valve Assembly
• Designed for BFT high-pressure waterjet intensifier pumps
• Controls inlet water flow and prevents reverse flow
• Supports consistent pressure generation and cutting performance
• Precision-machined components for reliable sealing
• Simplifies maintenance and reduces installation time
• Suitable for industrial waterjet cutting environments
• Direct replacement for assemblies referenced as CP022109/844 and 1100020.

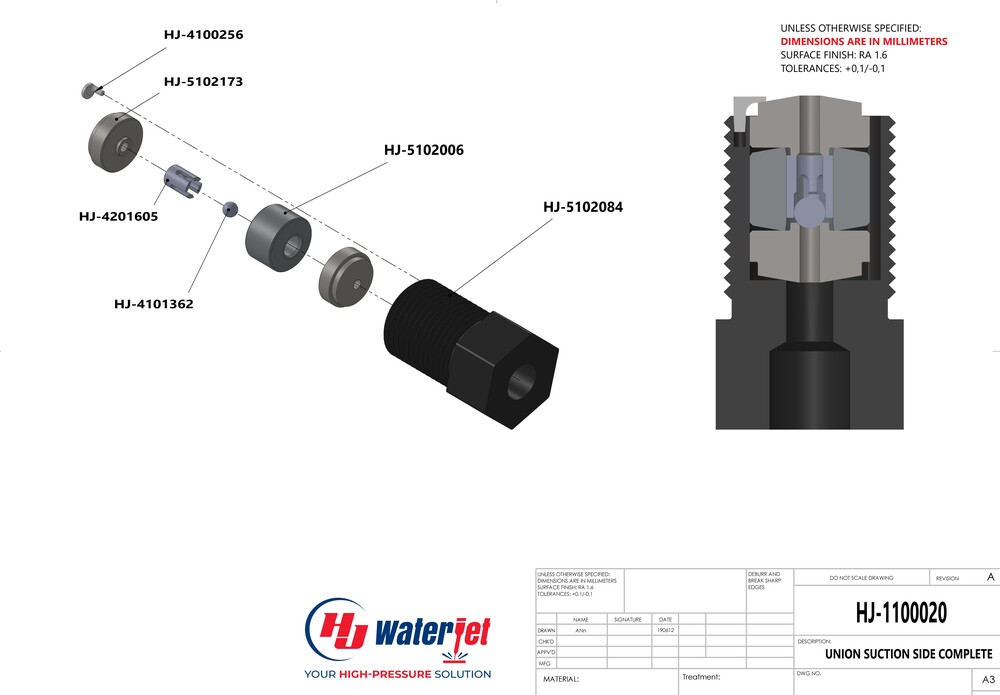

Included Components

The HJ-1100020 Complete Suction-Side Valve Assembly contains the primary suction valve elements, including:

• Union Suction Side Body
• Valve seat
• Valve insert
• Lens
• Ball
• Safety Bolt and related internal components

These parts work together to regulate water intake and maintain proper valve function during high-pressure pump operation.

Benefits

• Maximizes waterjet pump efficiency
• Maintains accurate inlet flow control
• Reduces wear on pump components
• Minimizes pressure fluctuations
• Improves system reliability
• Helps prevent costly production downtime
• Enables quick replacement during scheduled maintenance cycles.

Technical Information

Frequently Asked Questions | HJ-1100020

1. What is HJ-1100020?
HJ-1100020 is a HJ Waterjet direct replacement part for BFT 1100020 Complete Suction Valve Assembly used on BFT high-pressure waterjet intensifier pumps. It controls water entering the intensifier and helps prevent reverse flow.

2. What are the alternate part numbers for HJ-1100020?
Common cross-references include:

• CP022109
• CP022109/844
• CP022844
  These references are associated with the same suction valve assembly.

3. What type of valve is HJ-1100020?
It is a suction-side check valve assembly, sometimes called a suction valve complete or inlet check valve assembly.

4. Where is HJ-1100020 used?
It is used in BFT high-pressure waterjet intensifier pump systems, including BFT pump families such as ECOTRON and SERVOTRON.

5. What does the suction valve do?
The valve regulates the inlet/suction flow of water into the intensifier and helps prevent backflow during the pump cycle. Proper operation is important for stable pump performance and pressure generation.

6. What components are included in the complete HJ-1100020 assembly?
The assembly incorporates components such as the suction-side body, valve seat, valve insert, lens, ball, and safety bolt.

7. What is the operating pressure rating?
Maximum allowable operating pressure of 400 MPa (4,000 bar), approximately 58,000 PSI.

8. What is the weight of HJ-1100020?
The complete assembly is approximately 388 grams.

9. Can I replace individual components instead of the complete valve?
Yes. Individual components associated with the suction assembly include the valve seat, lens, ball, valve insert, safety bolt, and union suction-side body. However, if several internal components are worn, replacing the complete assembly may be more efficient.

10. What are common symptoms of a worn suction valve?
Typical symptoms can include:

• Difficulty maintaining consistent pressure
• Pressure fluctuations
• Reduced pump performance
• Abnormal pump cycling
• Water leakage or backflow
• Increased wear of related valve components

11. Is HJ-1100020 the suction valve or pressure valve?
HJ-1100020 is the suction valve. The corresponding Pressure Valve Complete is HJ-1100039.

12. Should I replace the suction valve as part of pump maintenance?
It should be inspected during pump maintenance, particularly when pressure instability, leakage, or valve wear is observed.
