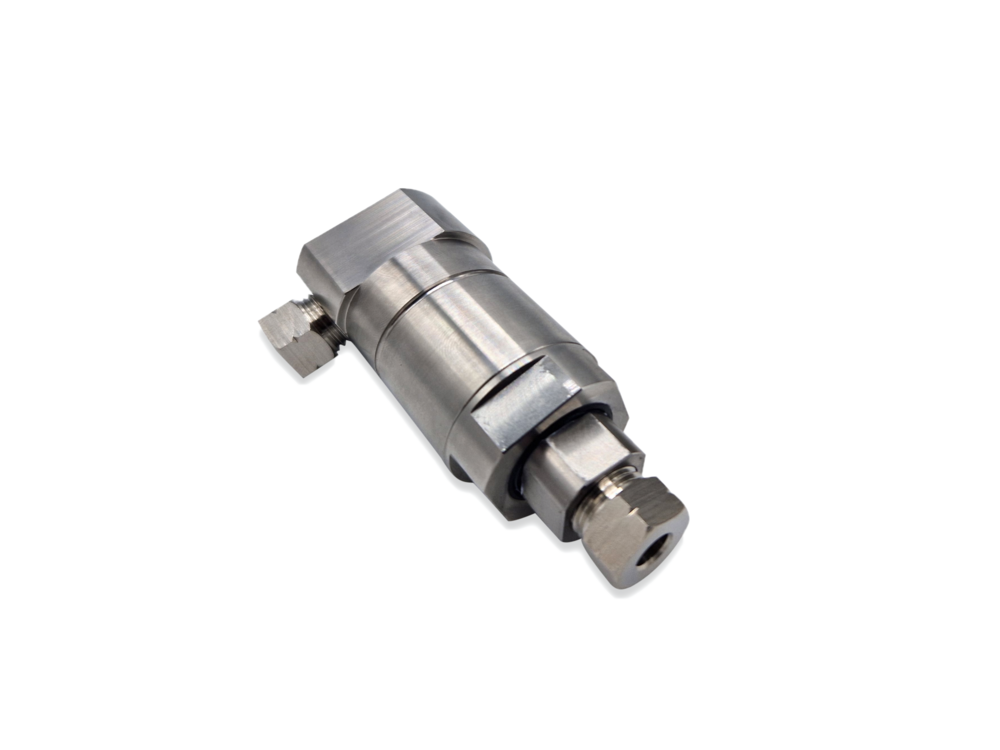

90° High-Pressure Swivel Assembly – 1/4" Female to Female | HJ-1-12863
The HJ-1-12863 90° Swivel Assembly is a precision-engineered 1/4-inch female-to-female high-pressure swivel designed for waterjet cutting systems and high-pressure fluid applications where controlled movement and reliable sealing are critical. Its 90-degree configuration provides installation flexibility while allowing connected components to rotate or move without unnecessarily transferring torsional stress into high-pressure hoses, tubing, fittings, or connected equipment.
The HJ-1-12863 swivel assembly is engineered to provide smooth, controlled rotational movement while maintaining a secure high-pressure connection. By allowing movement at the connection point, the swivel can help minimize hose twisting, reduce mechanical stress, improve routing flexibility, and help extend the service life of connected high-pressure components.
Improved Version of AccuStream 1-12863
The HJ Waterjet improved version of 1-12863 is designed as a precision high-pressure swivel solution for demanding waterjet applications. It allows controlled rotation between connected components while maintaining a reliable, leak-resistant seal. This design helps accommodate hose and tubing movement without transferring excessive torsional forces to fittings or high-pressure lines.
In dynamic waterjet applications, uncontrolled hose movement and repeated twisting can contribute to premature fatigue of hoses, fittings, seals, and connections. A properly engineered 90-degree swivel provides a dedicated movement point, helping improve installation flexibility and reduce unnecessary mechanical loading throughout the high-pressure plumbing system.
Key Features
- Part Number: HJ-1-12863
- Configuration: 90-degree swivel assembly
- Connection: 1/4-inch female to female
- Application: High-pressure waterjet systems and fluid systems
- Precision-engineered swivel design for controlled rotational movement
- Helps reduce torsional stress on connected hoses, tubing, and fittings
- Provides greater flexibility when routing high-pressure lines
- Helps reduce hose fatigue caused by twisting and movement
- Designed for reliable sealing in demanding high-pressure applications
- Includes swivel seal, swivel backup, thrust bearing, and O-ring
- Serviceable with the HJ-1-12864 90° Swivel Minor Repair Kit
The HJ-1-12864 90° Swivel Minor Repair Kit used for servicing the HJ-1-12863 Swivel Assembly. The repair kit is intended to restore the sealing and operating components of the swivel assembly when maintenance is required.
Why Use a High-Pressure Swivel?
High-pressure waterjet plumbing can experience movement, vibration, and torsional loading during installation and operation. A swivel assembly provides controlled movement at the connection rather than forcing the hose or tubing to absorb that movement.
The HJ-1-12863 90-degree swivel can help:
- Reduce twisting and torsional loading on high-pressure hoses
- Minimize stress transferred to fittings and connections
- Improve high-pressure hose routing
- Accommodate movement between connected components
- Reduce mechanical fatigue in dynamic applications
- Improve installation flexibility in confined spaces
- Support longer service life of connected components
- Maintain a reliable high-pressure sealing interface
Waterjet Applications
The HJ-1-12863 Swivel Assembly is suitable for use in high-pressure waterjet cutting equipment and fluid-handling systems where a 90-degree female-to-female swivel connection is required.
Typical applications include:
- Industrial waterjet cutting machines
- High-pressure waterjet plumbing
- Ultra-high-pressure fluid systems
- High-pressure hose connections
- Waterjet cutting heads and plumbing assemblies
- Dynamic high-pressure hose routing
- High-pressure fittings and connection points
- Industrial fluid delivery systems
- Waterjet maintenance and repair applications
Service & Maintenance
For maintenance of the HJ-1-12863 swivel assembly, HJ Waterjet specifies the HJ-1-12864 90° Swivel Minor Repair Kit. The kit contains replacement sealing and wear components intended for servicing the swivel assembly.
Regular inspection of high-pressure swivels, seals, O-rings, connections, and hoses is recommended as part of a waterjet system''''''''s preventive maintenance program. Replacing worn sealing components can help maintain proper performance and minimize the possibility of leakage or premature component failure.
Precision High-Pressure Waterjet Replacement Part
The HJ Waterjet new improved HJ-1-12863 90° Swivel Assembly is an important high-pressure plumbing component for applications requiring controlled movement and a compact 90-degree connection. Its female-to-female 1/4-inch configuration makes it particularly useful where high-pressure lines must be routed around equipment while retaining flexibility at the connection point.
For waterjet operators, maintenance departments, and replacement-parts distributors, the HJ-1-12863 provides a practical solution for managing movement and mechanical stress within high-pressure waterjet plumbing.
