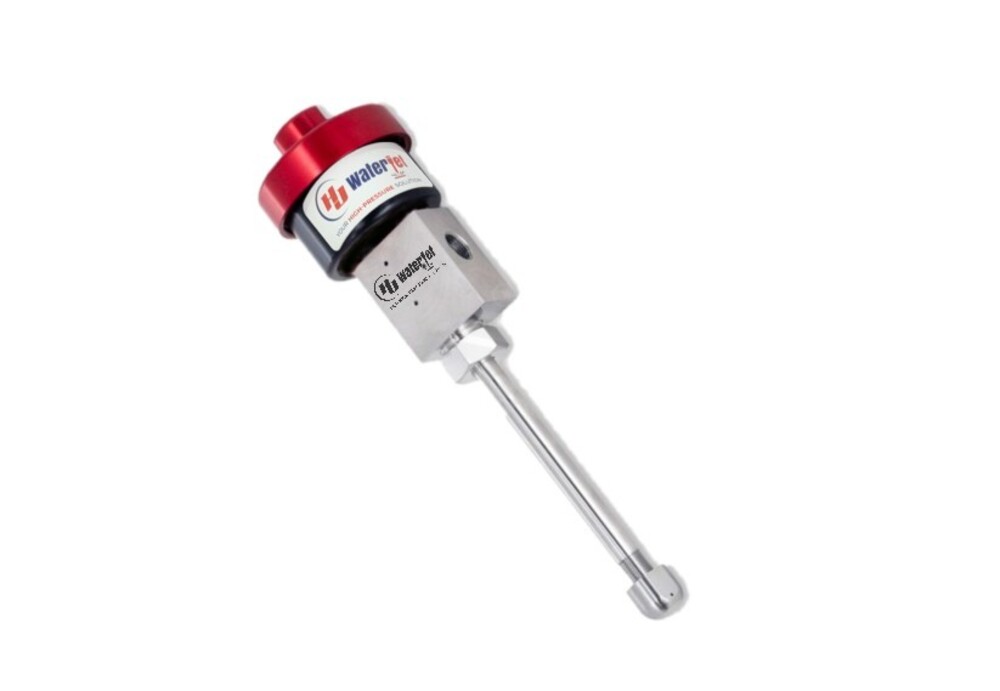

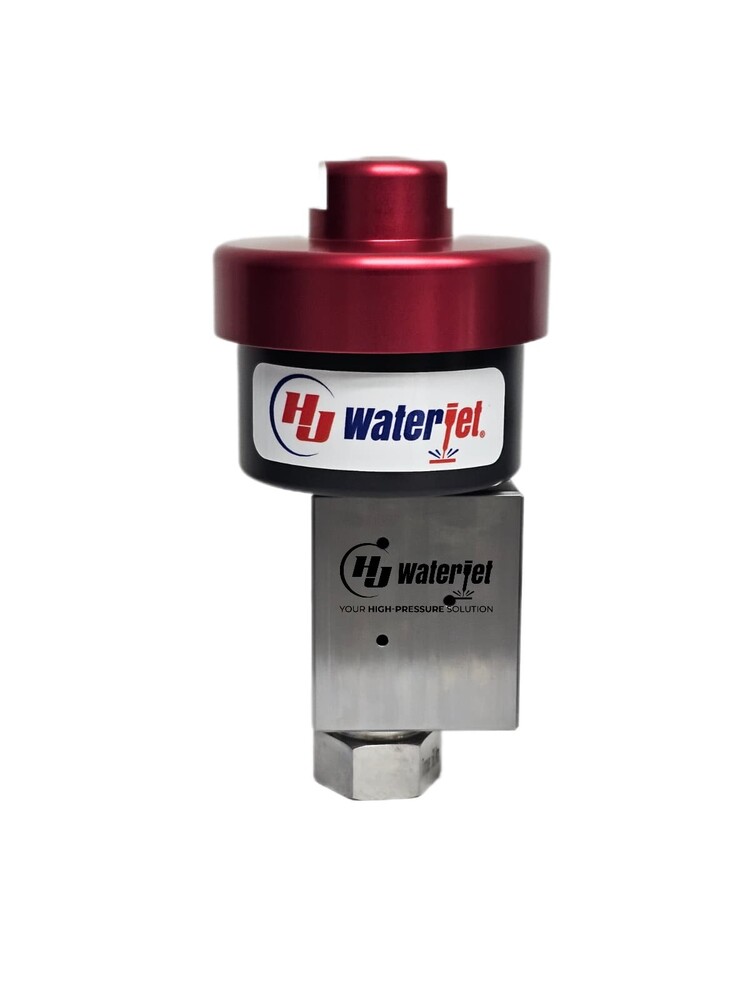

Pneumatic Valve Actuator Assembly | Food Applications | UHP | HJ-72124591
The HJ WATERJET Pneumatic Valve Actuator Assembly, HP, Food Applications (HJ-72124591) is a precision-engineered high-pressure pneumatic valve system designed for waterjet cutting applications requiring hygienic, corrosion-resistant, and washdown-safe components used in food processing applications.
The HJ-72124591 HP Pneumatic Valve Actuator Assembly integrates both the pneumatic actuator and high-pressure valve into a single unit, delivering fast, accurate control of ultra-high-pressure water flow in demanding industrial and food-grade environment
Built specifically for sanitary applications, this component supports clean operation while maintaining performance at up to 60,000 PSI, making it ideal for demanding industrial food cutting environments.

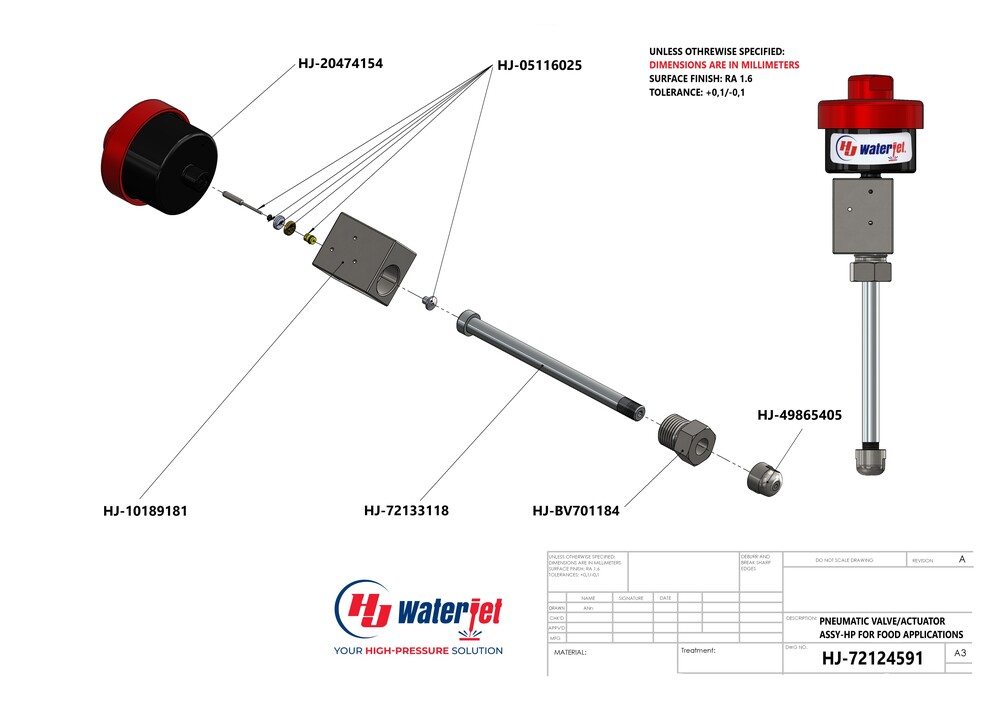

The HJ-72124591 HP Pneumatic Valve, N/C Actuator Assembly includes:
HJ-20474154 Actuator Assembly, UHP, Normally Closed, 90K
HJ- 05116025 Kit, Pneumatic Valve Repair, HP, NC, 60K
HJ-10189181 Body, Pneumatic Valve, HP, 2-Port, 60K

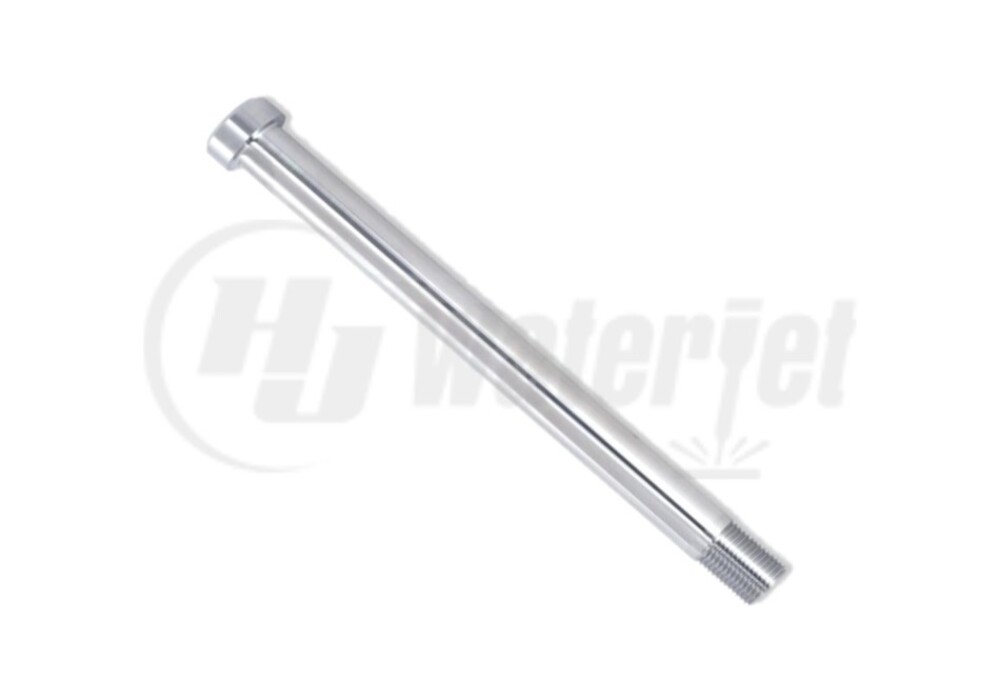

HJ-72133118 Nozzle Tube, RS, 9/16” X 7.650”, 9/16”NN, FOOD APPLICATION
HJ-49865405 Nozzle Nut, .56, HP, 60k

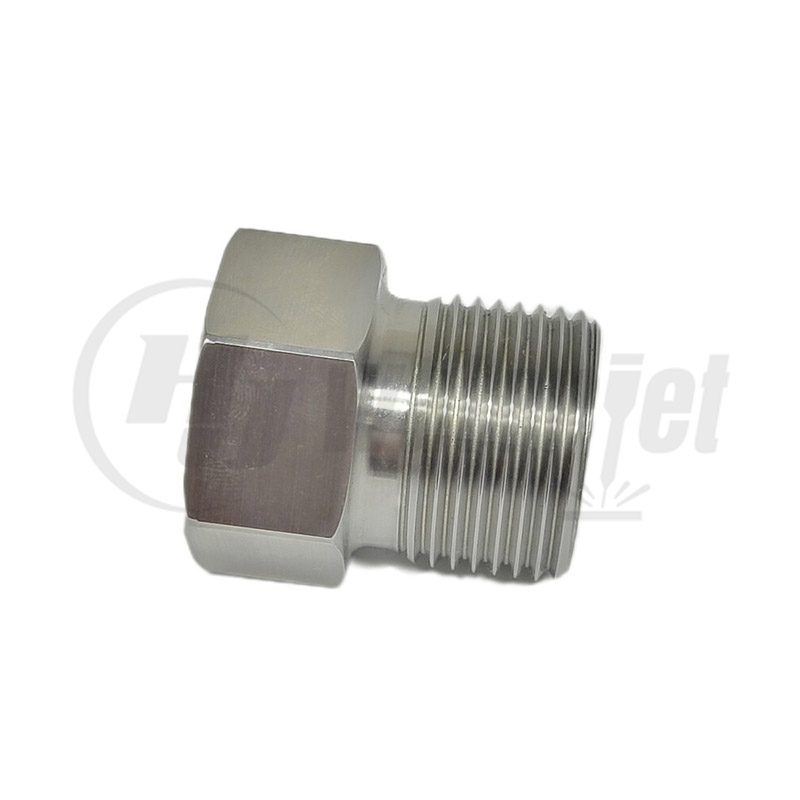

HJ-BV701184 Gland, Nozzle Tube, .562 ID, 60K, 90K
Key Benefits
- Hygienic Design – Suitable for food processing environments
- Reliable Flow Control – Ensures precise waterjet cutting performance
- Reduced Downtime – Integrated assembly simplifies maintenance
- Consistent Operation – Stable actuation improves production efficiency
- Long Service Life – Built for high-cycle industrial use
Food Industry Applications
This HJ-72124591 HP Pneumatic Valve Actuator Assembly is widely used in food-grade waterjet cutting, including:
- Meat and poultry portioning
- Bakery and frozen food cutting
- Vegetable and produce processing
- Seafood portioning systems
Waterjet cutting is preferred in food applications because it provides:
- No contamination risk
- No heat-affected zone (HAZ)
- Clean, precise cuts
- Reduced product waste
Frequently Asked Questions | HJ-72124591
1. What is HJ-72124591?
HJ-72124591 is a direct replacement for KMT 72124591 High-Pressure Pneumatic Valve / Actuator Assembly used on KMT waterjet cutting equipment, specifically configured for food-processing applications.
2. What does “normally closed” (NC) mean?
Normally closed means the valve remains closed when the pneumatic actuator is not energized/activated. Pneumatic actuation opens the valve to allow high-pressure water flow.
3. What pressure is HJ-72124591 designed for?
The assembly is associated with 60,000 psi (60K) waterjet applications. One detailed parts listing identifies the valve body and associated components as 60K-rated.
4. What type of waterjet is it used for?
It is intended for high-pressure waterjet cutting, particularly food-grade cutting systems. Applications can include meat and poultry portioning, bakery products, frozen foods, vegetables, produce, and seafood.
5. Why is this version called a “food application” assembly?
The assembly is configured for environments where hygiene, corrosion resistance, and washdown compatibility are important. This makes it appropriate for food-processing waterjet systems.
6. What symptoms indicate that this assembly may need service or replacement?
Typical indications can include:
- High-pressure water leaking when the valve should be closed
- Valve failing to open or close correctly
- Slow or inconsistent valve response
- Loss of cutting pressure at the cutting head
- Pneumatic actuator leakage
- Excessive wear of valve seals or internal components
7. Can HJ-72124591 be rebuilt instead of replaced?
Potentially. The assembly listing identifies a pneumatic valve repair kit as one of its associated components, suggesting that serviceable components are available. The correct repair procedure and replacement parts should be verified against specific equipment configuration.
8. What information should I provide when ordering HJ-72124591?
For the most accurate replacement, provide:
- Part number: 72124591
- Waterjet machine model
- Machine serial number
- Pump horsepower
- Operating pressure (e.g., 60K)
- Whether the application is food cutting
- Photos of the existing assembly, if there is any uncertainty
