Electronic Shift Sensor Assembly | HJ-301011-3-A

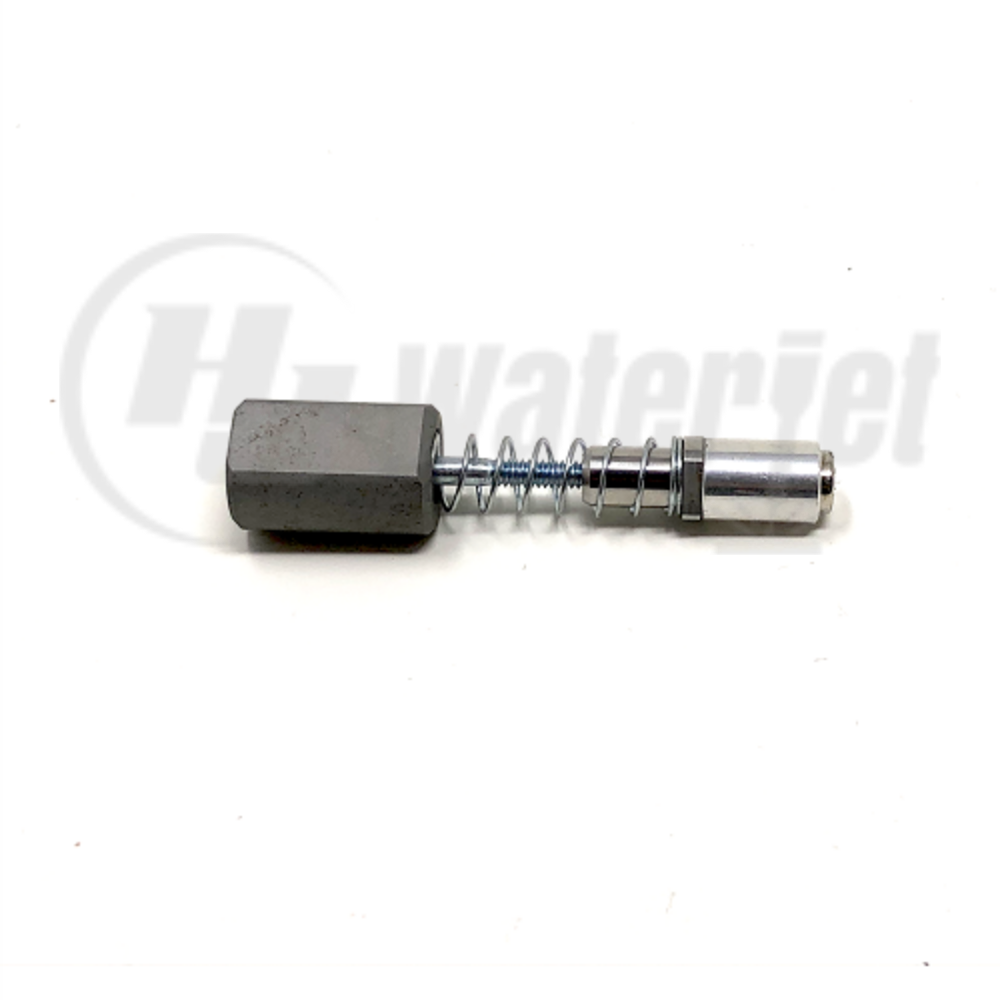

The HJ-301011-3-A Electronic Shift Sensor Assembly is a critical component used in H2O Jet and FLOW compatible high-pressure waterjet intensifier pump systems. The HJ-301011-3-A Electronic Shift Sensor Assembly monitors and controls the electronic shifting process of the hydraulic intensifier, ensuring accurate piston reversal and maintaining continuous ultra-high-pressure water flow during cutting operations. It is commonly referenced as a Shift Sensor Actuator Assembly, Electronic Shift Actuator Assembly, or Electronic Shift Sensor Assembly.
Cross-Reference Part Numbers
|
Manufacturer
|
Part Number
|
|
H2O Jet
|
301011-3-A
|
|
Flow
|
B-8346-1
|
|
KMT
|
20457264
|
Detailed Technical Description
The HJ-301011-3-A Electronic Shift Sensor Assembly is designed to detect the position of the intensifier piston and electronically signal the pilot shift valve to reverse hydraulic flow. This action allows the intensifier to cycle continuously, generating consistent water pressures that can exceed 60,000–90,000 PSI depending on system configuration.
Main Functions
- Detects piston end-of-stroke position.
- Initiates hydraulic shift valve actuation.
- Maintains continuous intensifier cycling.
- Enhances cutting accuracy and pressure stability.
- Reduces mechanical wear compared to older mechanical shifting systems.
- Supports reliable operation in demanding industrial environments.
The HJ-301011-3-A Electronic Shift Sensor Assembly is typically installed within the hydraulic drive section of H2O intensifier pumps and works together with the electronic pilot shift valve and proximity sensor system.
Key Features
Precision Electronic Detection
Provides highly accurate piston position sensing for dependable shift timing.
Improved Reliability
Eliminates many of the wear points associated with mechanical shift mechanisms.
OEM Compatibility
Direct replacement for H2O Jet 301011-3-A and Flow B-8346-1 systems.
High-Pressure Performance
Designed for use in ultra-high-pressure waterjet applications operating up to 90,000 PSI systems.
Industrial Durability
Manufactured using corrosion-resistant and wear-resistant materials suitable for continuous operation in abrasive cutting environments.
Applications
The Electronic Shift Sensor Assembly HJ-301011-3-A is widely used in:
- Waterjet cutting machines
- Stone cutting systems
- Metal fabrication equipment
- Aerospace component manufacturing
- Automotive component cutting
- Glass and ceramic processing
- Composite material machining
- Industrial intensifier pumps
