SHIFT SENSOR HOUSING & CABLE ASSEMBLY

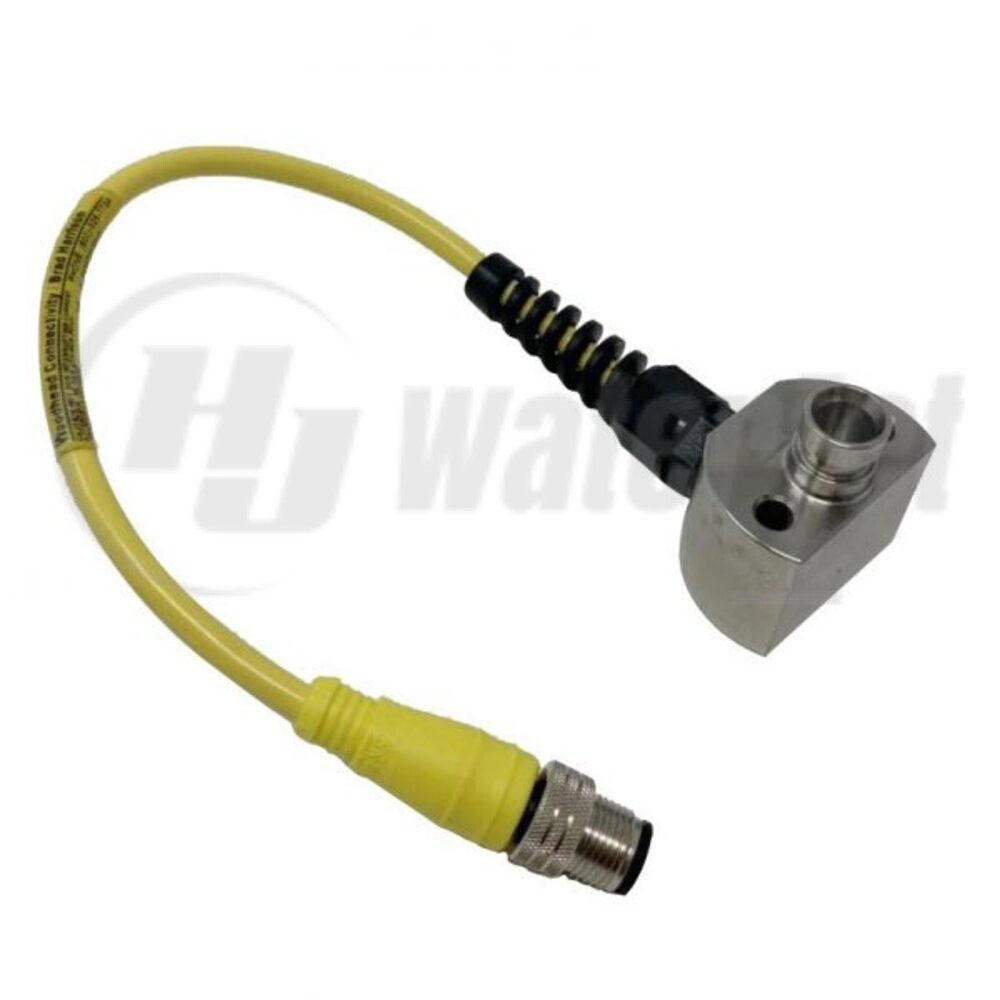

Shift Sensor Housing and Cable Assembly | HJ-301011-3-S

HJ-301011-3-S is a Shift Sensor Housing and Cable Assembly used in H2O Jet high-pressure waterjet intensifier systems. The Shift Sensor Housing and Cable Assembly (HJ-301011-3-S) is part of the electronic shift sensing system that monitors and controls hydraulic shifting operations within waterjet pumps operating at ultra-high pressures. The Shift Sensor Housing and Cable Assembly consists of the sensor housing and integrated cable designed to work with the H2O electronic shift system.

The HJ-301011-3-S assembly is commonly paired with the HJ-301011-3-A Shift Sensor Actuator Assembly, together forming the complete HJ-301011-3 Electronic Shift Sensor Assembly used on H2O Jet 40K, 60K, and 94K intensifier pumps.

Function and Purpose

The HJ-301011-3-S Shift Sensor Housing and Cable Assembly performs a critical role in the waterjet intensifier''''''''''''''''''''''''''''''''s electronic shifting mechanism. Its primary functions include:

• Detecting piston shift positions.
• Providing electronic feedback to the control system.
• Assisting accurate hydraulic valve switching.
• Improving pump efficiency and cycle timing.
• Reducing wear on intensifier components.
• Supporting reliable high-pressure waterjet operation.

When the intensifier piston reaches the end of its stroke, the sensor assembly communicates with the electronic shift system, initiating the reversal of hydraulic flow and maintaining continuous pressure generation.

Compatible Equipment

The HJ-301011-3-S is commonly found in:

• H2O Jet 40K Intensifiers
• H2O Jet 60K Intensifiers
• H2O Jet 94K Intensifiers
• Electronic Shift Waterjet Pump Systems
• High-Pressure Waterjet Cutting Machines
• Industrial Waterjet Pumps and Intensifier Assemblies

Industry Applications

The HJ-301011-3-S sensor assembly is used in:

• Aerospace manufacturing
• Metal fabrication
• Stone and granite cutting
• Automotive component production
• Defense manufacturing
• Glass cutting operations
• Industrial waterjet cutting systems
• Composite material machining

Common Symptoms of Failure

Replacement of the HJ-301011-3-S may be required if operators observe:

• Intermittent pump shifting
• Shift signal errors
• Hydraulic cycling problems
• Unexpected pump shutdowns
• Sensor communication faults
• Reduced intensifier efficiency
• Excessive cycling delays
• Electrical cable damage or wear

These symptoms can indicate degradation of the sensor housing, wiring, or internal sensing components.
