Back Ring-Static | HJ-5100113 | High-Pressure Check Valve Backup Ring
The HJ-5100113 Backup Ring is a precision-engineered high-pressure sealing support component designed for BFT ultra-high-pressure waterjet pumps. Installed within the check valve assembly, the HJ-5100113 Backup Ring provides critical support to the sealing system by preventing seal extrusion under extreme operating pressures while maintaining proper alignment of internal valve components.
Manufactured from premium wear-resistant materials, the HJ-5100113 Backup Ring delivers exceptional durability, dimensional accuracy, and long service life in demanding industrial waterjet applications operating up to 4,000 bar (60,000 PSI).
The HJ-5100113 Backup Ring helps reduce internal wear, extend check valve life, minimize downtime, and maintain consistent pump efficiency.
Key Features
- Direct interchangeable dimensions
- Premium wear-resistant construction
- Prevents seal extrusion under ultra-high pressure
- Supports proper check valve alignment
- Improves sealing reliability
- Extends service life of valve assemblies
- Excellent resistance to pressure cycling
- High dimensional accuracy
- Designed for industrial continuous-duty operation
- Easy installation during scheduled maintenance
- Long-lasting performance in abrasive waterjet environments
Applications
The HJ-5100113 Backup Ring is commonly used in:
- Ultra High-Pressure Waterjet Pumps
- Industrial Waterjet Cutting Systems
- Abrasive Waterjet Machines
- Pure Water Cutting Systems
- Metal Fabrication
- Aerospace Manufacturing
- Stone Cutting
- Glass Processing
- Composite Material Cutting
- Automotive Manufacturing
- Food Processing Equipment
- Industrial Production Facilities
Compatible Equipment
Suitable for numerous BFT pump platforms including:
- BFT ECOTRON
- BFT ECOTRON 38
- BFT SERVOTRON
- Additional compatible BFT high-pressure intensifier pumps using Part Number 5100113.
Function

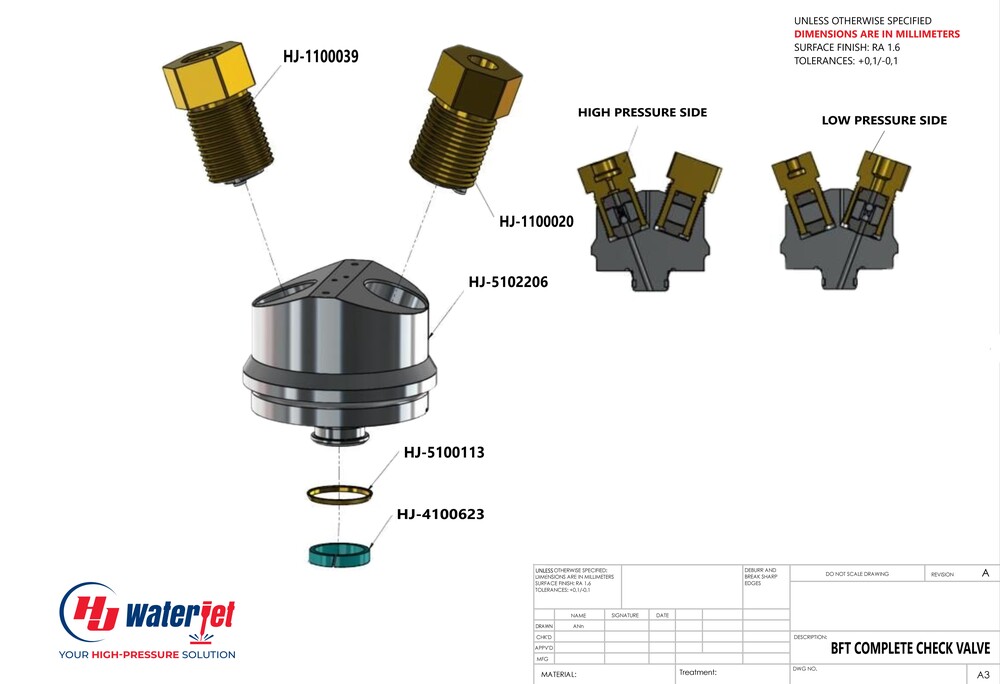

The HJ-5100113 Backup Ring serves an important role inside the high-pressure check valve assembly by:
- Supporting high-pressure seals
- Preventing seal deformation
- Eliminating seal extrusion
- Maintaining valve stability
- Reducing component wear
- Improving sealing performance
- Extending maintenance intervals
- Increasing overall pump reliability
Without a properly functioning backup ring, seals may prematurely fail, resulting in leakage, pressure loss, reduced cutting performance, and costly downtime.
Benefits
✔ Precision Manufactured
✔ High Pressure Rated
✔ Long Service Life
✔ Excellent Wear Resistance
✔ Easy Installation
✔ Reduced Maintenance Costs
✔ Improved Pump Reliability
✔ Consistent Waterjet Performance
✔ Maximum Equipment Uptime
Maintenance Recommendation
During scheduled maintenance of the high-pressure check valve assembly, inspect the backup ring for:
- Wear
- Deformation
- Surface damage
- Cracking
- Compression set
Replacing the backup ring whenever the check valves are serviced helps maintain proper sealing performance and extends the life of adjacent components. Backup rings are commonly included alongside check valve service components in major maintenance kits.
Technical Specifications
- Part Number: HJ-5100113
- Product Type: Backup Ring
- Application: High Pressure Check Valve Assembly
- Material: Premium Wear-Resistant Engineering Material
- Pressure Rating: Up to 60,000 PSI (4,000 Bar)
- Installation: Direct Replacement
Why Choose HJ Waterjet Replacement Parts?
HJ Waterjet replacement components are manufactured to meet and exceed OEM specifications for fit, precision, and durability. Every component is engineered for dependable performance in demanding ultra-high-pressure waterjet systems, providing the same critical dimensions and reliability expected from original equipment while offering outstanding value.
