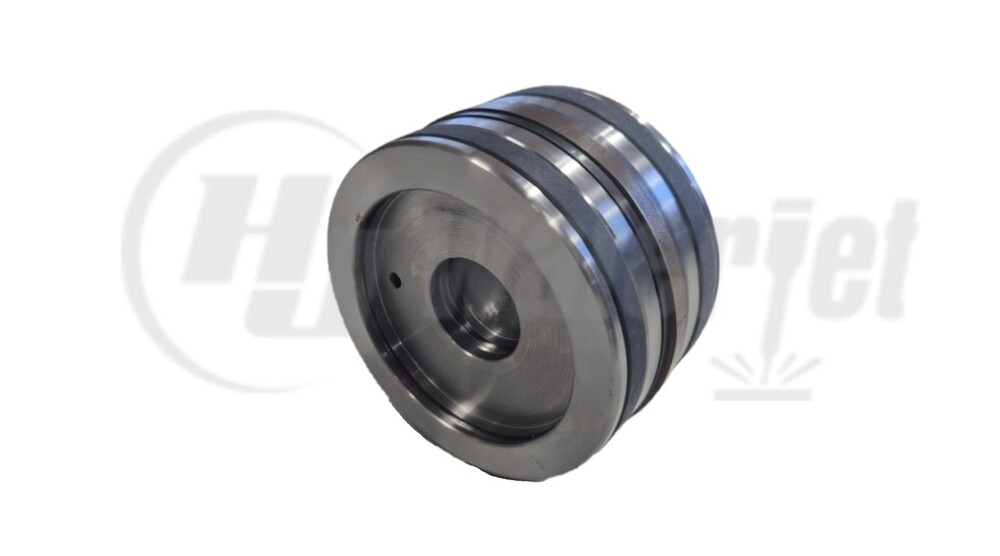

Hydraulic Piston Assembly; Biscuit - Hi-Load Piston, 60K | HJ-301023-1
The HJ-301023-1 Hydraulic Piston Assembly (Hi-Load Biscuit Piston) is an upgraded low-pressure hydraulic piston designed for use in H2O Jet intensifier pumps operating at approximately 60,000 PSI. The HJ-301023-1 Hydraulic Piston Assembly replaces older two-band piston designs with an advanced three-band Hi-Load configuration, delivering improved piston stability, reduced side loading, longer seal life, and enhanced overall pump performance.
Unlike traditional hydraulic pistons that rely on a simpler sealing arrangement, the HJ-301023-1 Hi-Load design incorporates:
- Three wear bands for superior piston guidance
- Reduced piston rocking and tilting
- Improved hydraulic cylinder alignment
- Lower friction during reciprocation
- Extended hydraulic seal life
- Increased reliability in high-duty-cycle waterjet cutting operations
The HJ-301023-1 Hydraulic Piston Assembly comes pre-built with seals, bands, and guides already installed, allowing for direct replacement with minimal downtime. It is specifically recommended to use a piston ring compressor or insertion tool during installation to prevent damage to the wear bands and seals.
Key Features
1. Advanced 3-Band Hi-Load Design
The upgraded piston uses three wear bands instead of the older two-band arrangement, creating greater contact area and better stabilization within the hydraulic cylinder. This minimizes side loading and uneven wear.
2. Extended Seal Life
Better alignment reduces stress on high-pressure seals, helping operators achieve longer maintenance intervals and lower operating costs.
3. Reduced Friction
The wear-band technology uses low-friction materials that improve efficiency and reduce heat generation within the hydraulic system.
4. Drop-In Replacement
Supplied fully assembled with bands and seals pre-installed, reducing rebuild time and simplifying maintenance procedures.
Technical Specifications
|
Specification
|
Details
|
|
Part Number
|
HJ-301023-1
|
|
Component Type
|
Hydraulic Piston Assembly (Biscuit)
|
|
Design
|
Hi-Load 3-Band Configuration
|
|
Pump Type
|
Intensifier Pump
|
|
Operating Pressure
|
60,000 PSI Systems
|
|
Application
|
H2O Jet Waterjet Pumps
|
|
Installation
|
Low-Pressure Hydraulic Cylinder
|
|
Assembly Includes
|
Piston, Wear Bands, Seals, Guides
|
|
Approximate Weight
|
5.7 lbs.
|
|
|
|
Benefits for Waterjet Operators
Increased Pump Reliability
The improved guidance system reduces piston instability, one of the primary causes of premature seal wear and hydraulic cylinder damage.
Lower Maintenance Costs
Longer component life means fewer rebuilds and reduced replacement-part expenses over the life of the intensifier.
Improved Cutting Uptime
Stable hydraulic operation helps maintain consistent pressure generation, resulting in more reliable cutting performance and less unplanned downtime.
Upgrade Path for Older Systems
Many H2O and Flow-style intensifiers can be upgraded from older piston designs to the Hi-Load configuration, improving performance without replacing the entire intensifier assembly.
Compatible Components
The HJ-301023-1 piston is commonly used with:
- HJ-302013-1 Hi-Load Piston Ring Kit
- HJ-302007-3 Hydraulic Seal Kit
- HJ-190008-1 Hydraulic Cylinder
- HJ-301005-3 Hi-Load Piston & Plunger Assembly
- HJ-60K Intensifier Assemblies and Short Blocks
