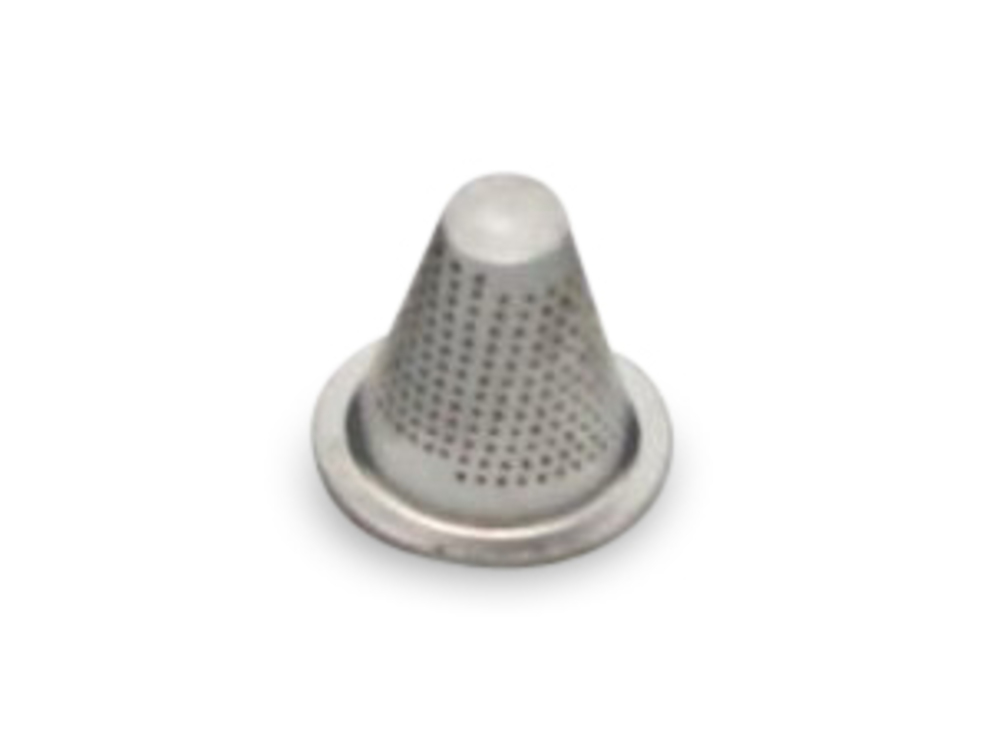

Short Stop Filter Element .006" | HJ-400096-1
The HJ Waterjet Short Stop Filter Element .006" HJ-400096-1 is a precision high-pressure filtration component designed to protect critical waterjet cutting-head components from sediment, metal particles, scale, rust, and other debris carried through the high-pressure water line. Installed in a compatible Short Stop Filter assembly, this HJ-400096-1 fine filtration element acts as a final line of defense before contaminants reach the on/off valve stem, valve seat, nozzle, and precision waterjet orifice.
For waterjet systems operating under demanding production conditions, even small particles can cause premature wear, valve leakage, or orifice damage. The HJ-400096-1 Short Stop Filter element helps capture potentially damaging debris before it reaches these critical components, helping maintain a cleaner high-pressure water path and more consistent cutting performance.
This .006" filter element is particularly valuable on older waterjet systems, systems where maximum uptime is critical, and machines equipped with expensive diamond orifices. It can also provide important protection following high-pressure tubing maintenance, pump service, repairs, component replacement, or other maintenance activities that may introduce foreign material into the HP water circuit. The HJ-400096-1 Short Stop Filter is identified as protection for the on/off valve poppet, seat, and orifice and notes its importance after pump rebuilds or high-pressure tubing maintenance.
Protect Your Waterjet Orifice Investment
A waterjet orifice is one of the most precision-critical components in the cutting head, and contamination can negatively affect its performance and service life. A damaged, chipped, clogged, or contaminated orifice can contribute to stream instability, reduced cut quality, premature component replacement, and unplanned downtime.
Installing a .006" Short Stop Filter element close to the cutting head helps intercept debris before it reaches the orifice. This is especially important when using diamond orifices, where protecting the orifice from foreign particles can help maximize the value and operating life of the cutting head.
The HJ-400096-1 Short Stop Filter element also helps protect the on/off valve stem and seat from contaminants that could otherwise contribute to premature wear or sealing problems.
Key Benefits
- .006" filtration element designed for high-pressure waterjet applications
- Helps remove sediment, debris, rust, scale, and other particulate contamination
- Protects the waterjet on/off valve stem and seat
- Helps protect precision waterjet orifices and diamond orifices
- Helps reduce contamination-related orifice clogging and damage
- Supports more consistent waterjet cutting performance
- Helps reduce unnecessary cutting-head maintenance
- Particularly beneficial for older waterjet systems
- Recommended for applications where machine uptime is critical
- Valuable protection for systems using expensive diamond orifices
- Important after pump rebuilds, HP tubing maintenance, repairs, and component replacement
- Designed as a replacement filter element for compatible Short Stop Filter assemblies
- Ideal for preventive maintenance and replacement of worn or contaminated filter elements
Where the Short Stop Filter Is Installed
The Short Stop Filter is generally installed in the high-pressure water line immediately upstream of the on/off valve and cutting-head/orifice assembly. Its purpose is to capture contaminants before they can enter the valve and precision orifice.
The closer the filter is positioned to the cutting head, the better it can serve as a final protective barrier against contaminants traveling through the high-pressure water circuit. The HJ-400096-1 Short Stop Filter is identified as a critical component for protecting the valve and orifice from line-borne debris.
Why Filter Protection Matters
High-pressure waterjet systems can generate or transport contamination from multiple sources, including:
- Pump maintenance and rebuilds
- High-pressure tubing replacement or maintenance
- Component wear
- Seal degradation
- Rust or corrosion
- Scale and mineral deposits
- Particles introduced during system service
- General contamination within the high-pressure water circuit
Without adequate filtration, these particles can travel directly toward the cutting head. Once they reach the orifice or on/off valve, they can contribute to premature wear, clogging, leakage, or damage.
The HJ-400096-1 Short Stop Filter provides an additional layer of protection between the high-pressure water supply and these precision components.
Ideal Applications
The HJ Waterjet Short Stop Filter Element HJ-400096-1 is ideal for:
- Industrial waterjet cutting machines
- Abrasive waterjet cutting systems
- High-pressure waterjet cutting heads
- Ultra-high-pressure waterjet systems
- Diamond orifice applications
- On/off valve assemblies
- Cutting-head filtration systems
- Older waterjet machines
- High-production waterjet operations
- Applications where uptime and reliability are critical
- Preventive waterjet maintenance programs
- Systems undergoing pump or HP tubing maintenance
Replacement & Cross-Reference Part Numbers
This HJ Waterjet Short Stop Filter element is commonly identified by several industry part numbers and cross-reference numbers.
- H20 Jet: 400096-1 – Short Stop Filter Element, .006"
- KMT: 20454426
- FLOW: C-14-0002
- ACCUSTREAM: 1-12401
- TECHNI: 12401TP
Important: Cross-reference numbers are provided for identification and compatibility purposes. Always verify the specific filter assembly, cutting-head configuration, pressure rating, and application before installation.
Compatible Short Stop Filter Assemblies
The HJ-400096-1 / .006" filter element is used in compatible Short Stop Filter assemblies designed to protect high-pressure waterjet cutting heads and orifices.
Related assemblies include:
- 301026-1 – Short Stop Filter Assembly, Coned Insert, 3/8"
- 301026-2 – Short Stop Filter Assembly, 3/8" Female x 3/8" Male
- 301026-3 – Short Stop Filter Assembly with Adapter, 1/4" Female x 3/8" Male
- 391026-3 – Short Stop Filter 94K Assembly, 1/4" Female x 1/4" Male
HJ-400096-1 is known as the Short Stop Filter element used with these assembly configurations.
Maintenance Recommendation
For high-production waterjet operations, maintaining a clean Short Stop Filter is an important part of protecting the cutting head and orifice. A contaminated or clogged filter should be inspected and replaced or serviced according to the requirements of the specific filter assembly and waterjet system.
Keeping a spare filter element available can help minimize maintenance-related downtime, particularly in operations where production interruption is costly.
For systems using expensive diamond orifices, the cost of filtration is small compared with the potential cost of premature orifice replacement and lost production.
HJ Waterjet Quality & Value
HJ Waterjet provides precision waterjet replacement components designed to deliver dependable performance without unnecessary OEM pricing. Our goal is to provide waterjet operators, maintenance departments, distributors, and service technicians with high-quality replacement parts that meet the demanding requirements of high-pressure and ultra-high-pressure waterjet cutting systems.
When replacing a Short Stop Filter element, selecting the correct filter size, configuration, pressure application, and compatible assembly is critical to maintaining proper protection of the waterjet cutting head.
Frequently Asked Questions
What is a Short Stop Filter used for?
A Short Stop Filter is used to remove debris from the high-pressure water stream before contaminants reach sensitive waterjet components such as the on/off valve stem, valve seat, and precision orifice.
What size is the HJ-400096-1 filter?
The HJ-400096-1 Short Stop Filter is identified as a .006" filter element.
- What does HJ-400096-1 replace?
Common cross-reference numbers include KMT 20454426, FLOW: C-14-0002, ACCUSTREAM: 1-12401, TECHNI: 12401TP
Why is a Short Stop Filter important when using a diamond orifice?
Diamond orifices are precision components and can represent a significant investment. Filtering debris before it reaches the orifice helps reduce the risk of contamination-related damage and premature replacement.
Where should the Short Stop Filter be installed?
It should generally be installed in the high-pressure water path close to the cutting head and upstream of the on/off valve/orifice assembly, using the appropriate compatible filter housing or adapter.
Is this the complete Short Stop Filter assembly?
No. HJ-400096-1 is the replacement filter element. Complete Short Stop Filter assemblies use this type of element in the appropriate housing/insert configuration.
When should the filter element be replaced?
Inspect the element as part of routine waterjet maintenance and replace it when contaminated, damaged, restricted, or otherwise unable to provide proper filtration. Follow the maintenance requirements of the specific waterjet system and filter assembly.
