Product Description

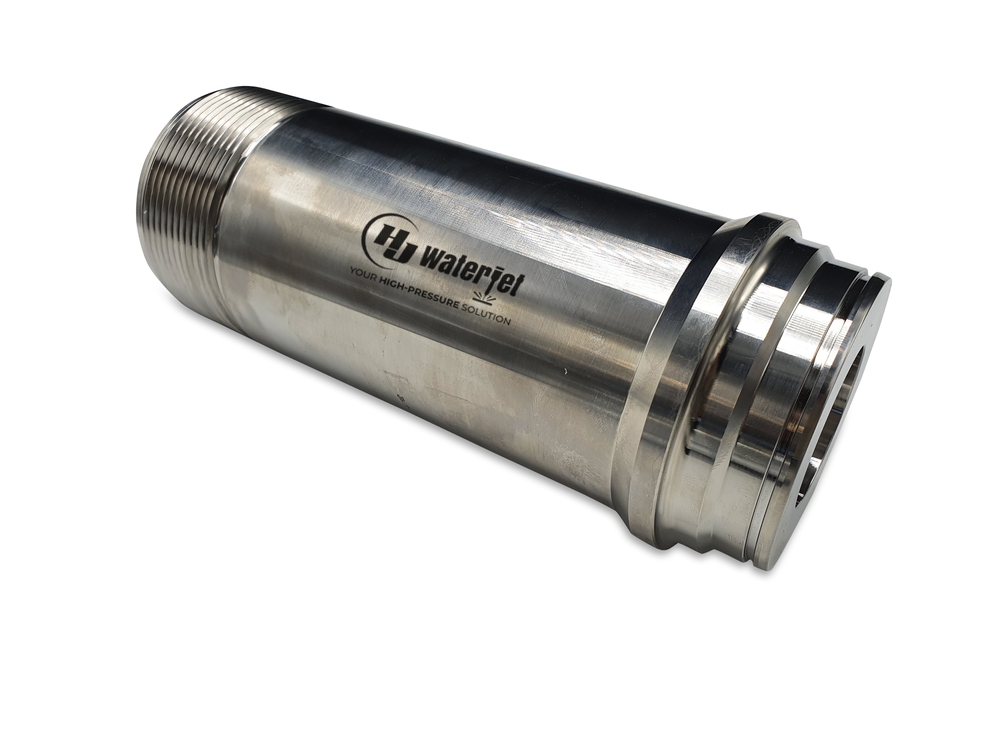

The HJ WATERJET High-Pressure Cylinder (HJ-5200515) is a precision-machined threaded ultra-high-pressure intensifier cylinder manufactured from premium hardened stainless steel and high-strength alloy materials designed for BFT SERVOTRON, HYTRON, ECOTRON, HYPERTRON, and SEMPERDUR-style waterjet intensifier pump systems, delivering exceptional pressure containment, superior sealing integrity, and long-lasting durability in demanding industrial waterjet applications.
This HJ-5200515 High-Pressure Cylinder functions as the primary high-pressure cylinder housing within the intensifier assembly, where ultra-high-pressure water is generated during reciprocating pump operation. The BFT-style threaded version cylinder works together with the plunger, sealing system, wear rings, and check valve assemblies to create stable water pressure required for precision abrasive and pure waterjet cutting.
The HJ-5200515 high-pressure cylinder performs several critical functions within the intensifier pump assembly by:
- Containing ultra-high-pressure water
- Supporting reciprocating plunger movement
- Maintaining sealing integrity
- Stabilizing pressure generation
- Protecting internal fluid-end components
The HJ-5200515 is essential for:
- Stable ultra-high-pressure operation
- Efficient intensifier performance
- Reliable cutting pressure
- Consistent waterjet cutting quality
The HJ-5200515 threaded HP cylinder design allows for secure assembly integration while maintaining precise alignment and pressure containment under extreme operating conditions.
The HJ WATERJET HJ-5200515 High-Pressure Cylinder is commonly used with the following components:
|
Part Number
|
Description
|
|
HJ-1100144
|
HP Seal Assembly
|
|
HJ-4100623
|
Rod Wear Ring
|
|
HJ-4100705
|
O-Ring
|
|
HJ-5102132
|
Check Valve Body
|
|
HJ-5200593
|
Back Ring
|
|
HJ-5100104
|
Flange
|
|
HJ-5200540
|
Cylinder Flange
|
|
HJ-5200541
|
Cylinder Flange
|
|
HJ-1215847
|
High-Pressure Seal Kit
|
|
HJ-5102173
|
Check Valve Seat
|
|
HJ-4101362
|
Check Valve Ball
|
|
HJ-4100956
|
Check Valve Spring
|
These HJ WATERJET components work together to maintain reliable ultra-high-pressure sealing, pressure stability, and efficient waterjet intensifier operation.
Key Benefits
✔ Improved ultra-high-pressure sealing integrity
✔ Enhanced fatigue and wear resistance
✔ Reduced internal leakage
✔ Improved plunger stability
✔ Longer maintenance intervals
✔ Stable ultra-high-pressure operation
✔ Reduced downtime and operating costs
Applications
- CNC abrasive waterjet cutting systems
- Aerospace manufacturing
- Precision metal fabrication
- Stone and glass processing
- Composite material cutting
- Automotive production
- Continuous industrial manufacturing environments
Disclaimer:
HJ WATERJET recognizes that SEMPERDUR is a registered trademark of BFT and that the terms are used soley for reference purposes along with part numbers being used for convenience only.
