Union Pressure Side | HJ-5102085

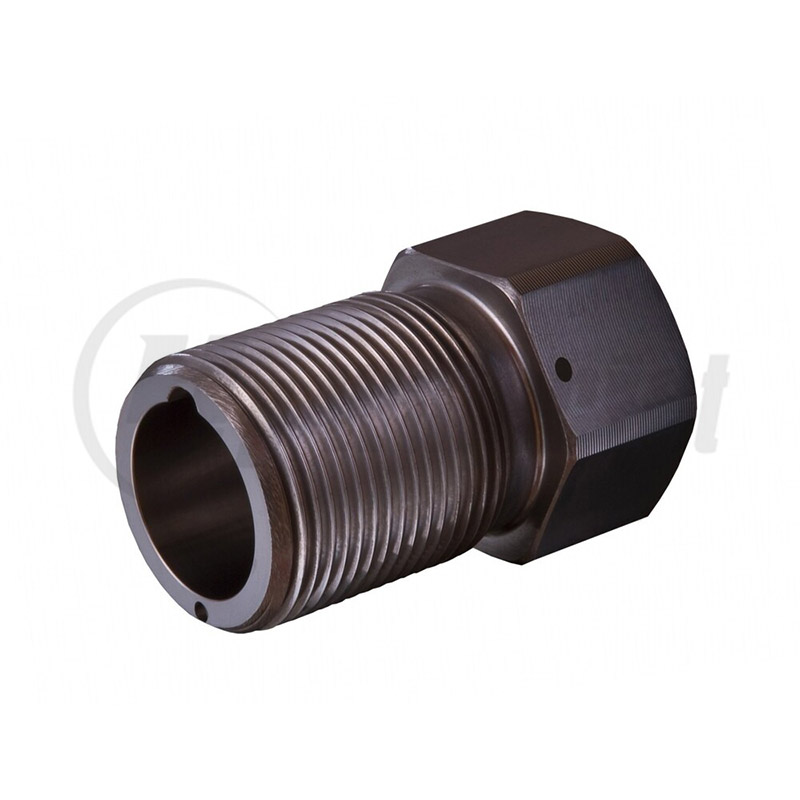

The HJ WATERJET Union Pressure Side (HJ-5102085) is a precision-machined high-pressure check valve union component designed for BFT SERVOTRON, HYTRON, ECOTRON, and Semperdur waterjet intensifier pumps, delivering superior sealing integrity, reliable valve retention, and stable ultra-high-pressure performance in demanding industrial waterjet applications.
The HJ WATERJET Union Pressure Side (HJ-5102085) functions as the primary pressure-side retaining union within the high-pressure check valve assembly, securely housing and compressing the internal valve components while maintaining leak-free operation under extreme hydraulic pressures.

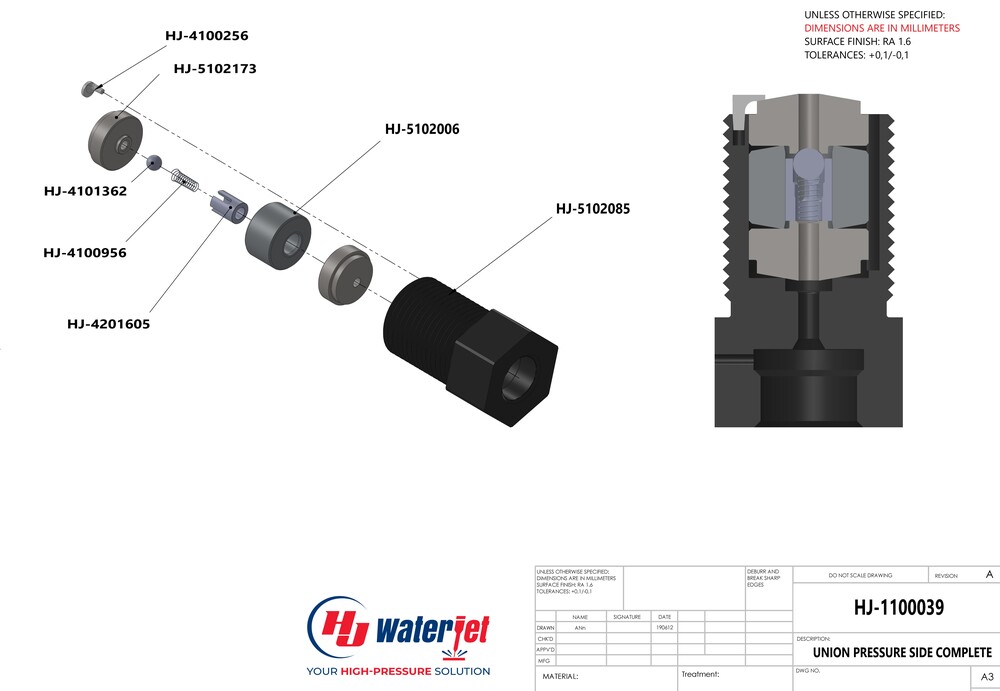

The HJ-5102085 Union Pressure Side is commonly used with the following components inside the pressure valve assembly:
|
Part Number
|
Description
|
|
HJ-5102173
|
Valve Seat
|
|
HJ-5102006
|
Lense/ Lens
|
|
HJ-201605
|
Valve Insert
|
|
HJ-4101362
|
Ball
|
|
HJ-4100956
|
Spring
|
|
HJ-4100256
|
Safety Bolt
|
|
HJ-5102206
|
Valve Body
|
|
HJ-1100039
|
Pressure Valve Complete
|
|
HJ-5201106
|
Union Pressure Valve Cartridge
|
|
HJ-5102084
|
Union Suction Side
|
Key Benefits
✔ Improved pressure-side sealing integrity
✔ Enhanced valve alignment and retention
✔ Reduced internal leakage
✔ Increased fatigue and wear resistance
✔ Longer maintenance intervals
✔ Stable ultra-high-pressure operation
✔ Reduced downtime and operating costs
Applications
- CNC abrasive waterjet cutting systems
- Aerospace component cutting
- Precision metal cutting
- Stone and glass cutting
- Composite material cutting
- Continuous industrial production environments
