Union Suction Side | HJ-5102084
The HJ-5102084 Union Suction Side is a precision-machined component used in ultra-high-pressure waterjet intensifier pump systems. It forms a critical structural and hydraulic sealing interface within the suction-side check valve assembly, ensuring controlled fluid intake into the high-pressure pumping chamber.
Designed for use in demanding industrial environments, this union plays a key role in maintaining system integrity, flow efficiency, and pressure stability during continuous waterjet cutting operations.
The HJ-5102084 Union Suction Side is commonly referenced under OEM cross number CP022043/844, making it a widely recognized replacement in global waterjet maintenance and spare parts supply chains.
The HJ-5102084 suction side union performs multiple critical functions simultaneously:
1. Hydraulic Intake Sealing
- Creates a high-pressure sealed passage between the suction valve housing and pump head
- Prevents micro-leakage during intensifier cycling
- Maintains vacuum integrity during the suction stroke
2. Structural Load Support
- Absorbs repeated mechanical stress from high-frequency pump reciprocation
- Maintains alignment of internal check valve components
- Ensures stable compression of sealing surfaces under pressure spikes
3. Flow Stabilization
- Helps regulate smooth fluid entry into the intensifier chamber
- Reduces turbulence that can damage check valve internals
- Supports consistent volumetric efficiency of the pump system
4. System Protection
- Prevents reverse flow (backflow) into suction line
- Protects downstream components such as seals, balls, and valve seats
- Extends operational lifespan of the entire valve assembly

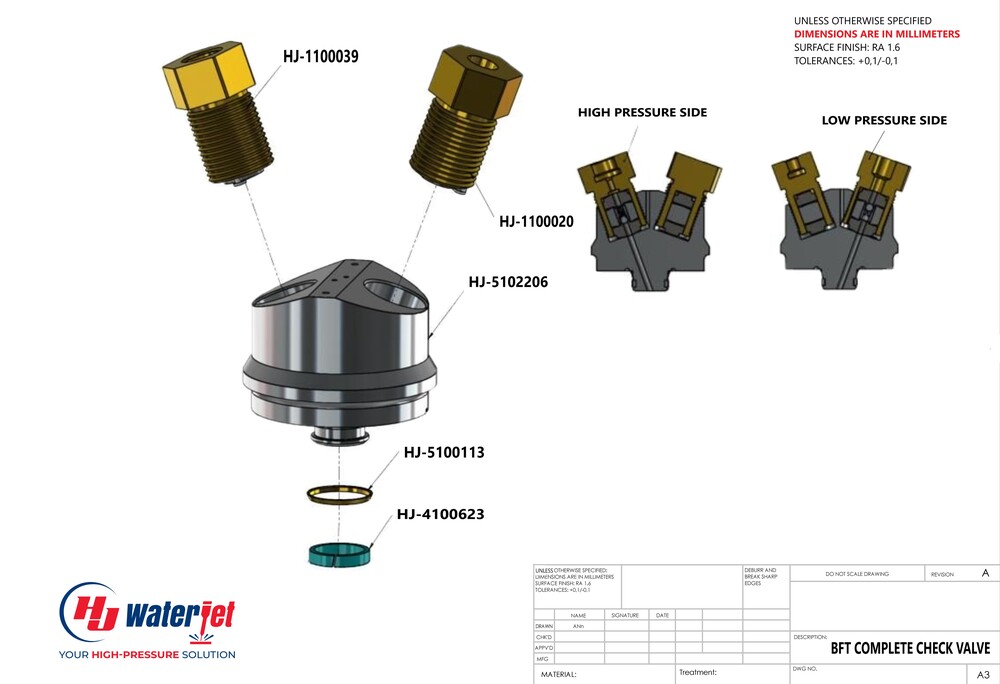

The HJ-5102084 Union Suction Side is not a standalone part—it is a core structural element of the suction-side check valve assembly.
It interacts directly with:

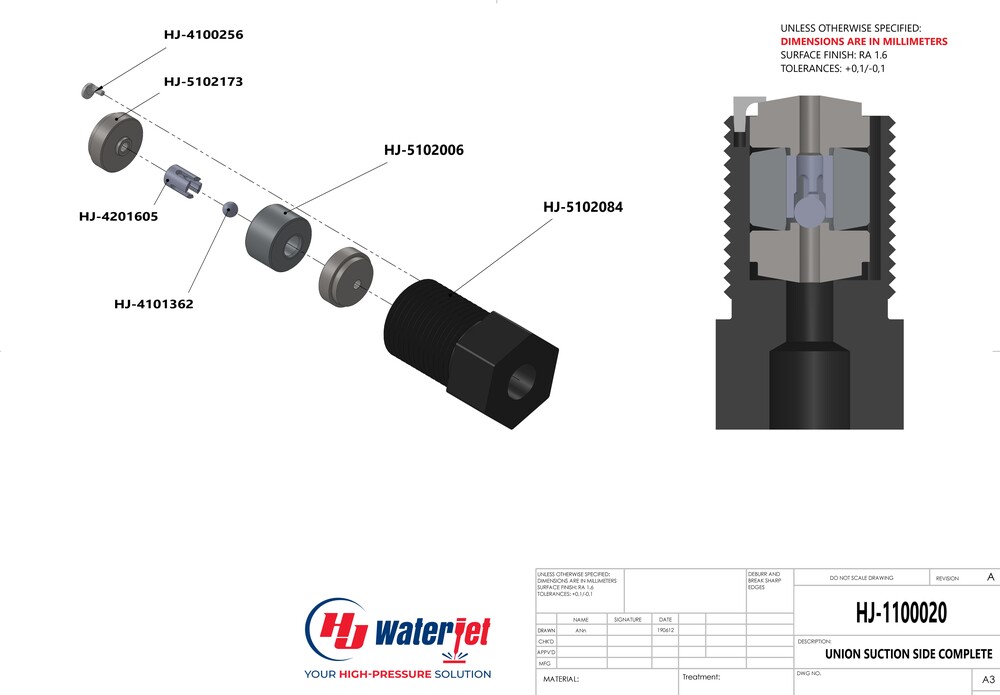

- Valve Body (HJ-5102206) – Main housing structure
- Valve Seat (HJ-5102173) – Sealing interface for flow control
- Ball (HJ-4101362) – One-way flow control element
- Insert (HJ-4201605) – Guides internal alignment and flow direction
- Lens / Spacer (HJ-5102006) – Pressure distribution component
- Safety Bolt (HJ-4100256) – Mechanical retention and security
Together, these components form a high-pressure directional control system capable of operating under extreme intensifier pressures exceeding industrial waterjet standards.
