HP Check Valve Repair Kit | HJ-010642-1
The HJ WATERJET HP Check Valve Repair Kit (HJ-010642-1 or HJ-302003-1) is a comprehensive rebuild solution designed for inlet and outlet check valve assemblies used in waterjet intensifier pumps operating at 40,000 PSI, 60,000 PSI, and 94,000 PSI (87K nominal systems).
The HJ-010642-1 or HJ-302003-1 HP Check Valve Repair Kit restores the one-way flow control system that is critical to maintaining pressure, efficiency, and cutting performance. Check valves cycle continuously during operation, making them one of the highest-wear components in any intensifier system.
Over time, poppets, seats, springs, and seals degrade—leading to pressure loss, backflow, and inconsistent cutting performance. The HJ-010642-1 or HJ-302003-1 HP Check Valve Repair Kit replaces all critical wear components, restoring the valve to like-new operating condition.
The HJ-010642-1 or HJ-302003-1 HP Check Valve Repair Kit include the following parts:
HJ-A-0275-125 or HJ- 400043-125 Check Valve O-Ring (2)

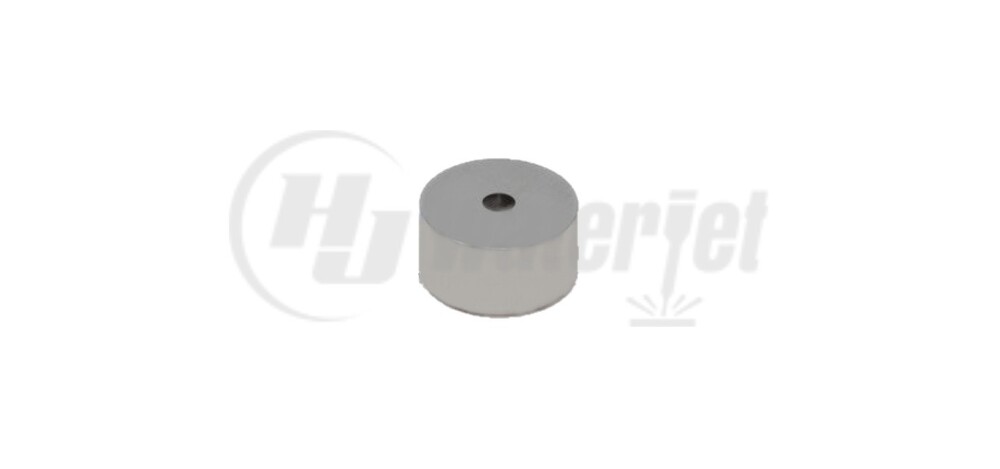

HJ-004382-1 or HJ-100034-1 Check Valve - Poppet Seat
HJ-005917-1 or HJ-100057-1 Check Valve Poppet Outlet
HJ-A-1606 or HJ-400045-1 Check Valve Spring
HJ-004380-1 or HJ-100056-1 Check Valve Retaining Screw
HJ-010564-1 or HJ-301009-1 Check Valve Inlet Poppet Housing
HJ-010011-1 or HJ-100058-1 Check Valve Inlet Poppet
Key Benefits
- Restores Full Pressure Output – Eliminates backflow and leakage
- Improves Cutting Performance – Consistent water stream
- Extends Pump Life – Reduces stress on other components
- Multi-Pressure Compatibility – One kit for multiple systems
- Complete Rebuild Solution – All wear parts included
Applications
- Industrial waterjet cutting systems
- Automotive manufacturing (robotic cutting and trimming)
- Aerospace fabrication
- Metal, stone, and composite cutting
- Ultra-high-pressure cutting environments (up to 94K)
1. What is HJ Waterjet part number HJ-010642-1?
HJ-010642-1 is a direct replacement for FLOW 010642-1 High-Pressure Check Valve Repair Kit used in Flow waterjet intensifier pump systems. It is designed to restore proper one-way water flow through the check valve assembly.
2. What waterjet pumps use HJ-010642-1?
The part is associated with Flow 60K ESL intensifier pump systems and Flow 60K check-valve assemblies.
3. Is HJ-010642-1 a complete check valve assembly?
No. It is a repair kit, not the complete check valve assembly. If the check valve body or other major components are damaged, those components may need to be replaced separately.
4. What pressure rating is HJ-010642-1 used for?
The kit is commonly listed for 40K, 60K and 94K applications, although specific configuration and compatibility should be verified against the pump model. HJ Waterjet lists its HJ-010642-1 equivalent across these pressure classes.
5. What are the symptoms of a worn check valve?
Common symptoms can include:
- Difficulty maintaining consistent pressure
- Pressure fluctuations
- Reduced cutting performance
- Increased pump cycling
- Water leakage or improper flow through the check valve
- Premature wear of related pump components
6. When should the HJ-010642-1 check valve repair kit be replaced?
Replacement is generally appropriate during intensifier maintenance or when inspection shows wear, damaged sealing surfaces, worn poppets, springs, O-rings, or other check-valve components.
7. Can I replace individual components instead of the entire kit?
Yes. Individual components such as the O-ring, insert, outlet poppet, spring, retaining screw, inlet poppet and support are available separately. However, replacing the complete repair kit can be practical when performing scheduled check-valve maintenance.
8. What is the function of the check valve in an intensifier pump?
The check valve controls one-way high-pressure water flow through the intensifier system. Proper check-valve operation is essential for maintaining pressure and efficient pump operation.
9. What other parts are commonly replaced with HJ-010642-1?
Commonly associated components include the HJ-010559-3 Check Valve Assembly, HJ-004383-3 Check Valve Body, HJ-004382-1 Insert, HJ-005917-1 Outlet Poppet, HJ-A-1606 Compression Spring, and HJ-001198-1 High-Pressure Seal Kit.
10. Is HJ-010642-1 the same as HJ-015866-1?
They are commonly listed together as equivalent/replacement references for the Flow check valve repair kit.
11. What should I verify before ordering HJ-010642-1?
Verify:
- Pump model
- Pressure rating
- Existing check-valve configuration
- Current part number
- Whether you need a repair kit or complete check valve assembly
